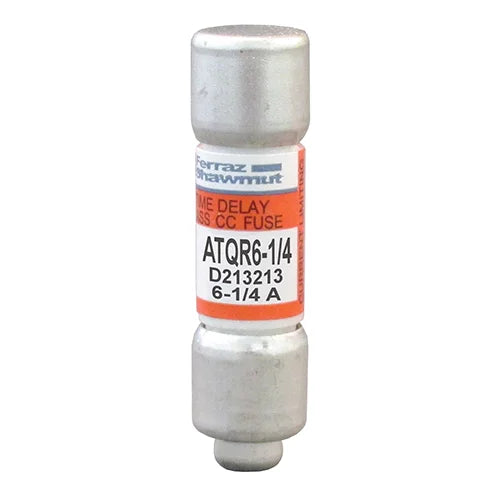

Mersen ATQR6-1/4 Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 6.25A Ferrule Amp-Trap 2000

Product Description

The MERSEN ATQR6-1/4 is a fuse ATQR featuring time-delay characteristics ideally suited for high inrush currents of control transformers and solenoids. Mersen's Amp-Trap 2000 ATQR fuses provide superior protection for the branch circuits of electrical distribution systems.

• Time-delay characteristics suited for high inrush currents
• Superior protection for branch circuits
• Class CC Fuse

Product Highlights

The MERSEN ATQR6-1/4 fuse provides time-delay and superior protection for branch circuits with high inrush currents.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATQR6-1/4

Technical Specifications

• Item number: ATQR6-1/4
• Description: Fuse ATQR - Class CC - Time-Delay 600VAC 300VDC 6.25A Ferrule Amp-Trap 2000
• EAN/UPC Code: 782001906610
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 6.25 A
• AC or DC: AC/DC
• Fuse Class: Class CC
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• AC Voltage Rating: 600
• DC Voltage Rating: 300
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Brand: Mersen
• Voltage: 600 Volts
• Material: Metal
• Specification Met: CSA, UL
• Mounting Type: Surface Mount
• Ampere: 6.25 A
• Voltage rating: 600 Vac, 300 Vdc
• Interrupt rating: 200 kA
• Class: Class CC
• Shape: Cartridge Fuses
• Approvals: UL, CSA, RoHS
• Substitute parts: Bussmann FNQ-R, Littelfuse KLDR
• Dimensions: 0.41" Dia x 1.5" L (10.41x38.1mm)
