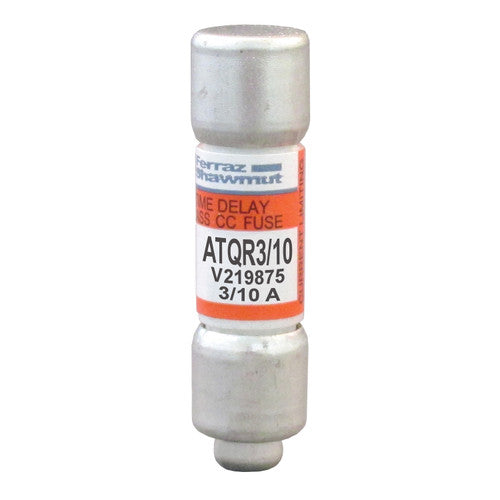

Mersen ATQR3/10 Fuse 0.3 Ampere

Product Description

The Mersen ATQR3/10 is a small-dimension, time-delay fuse suited for high inrush currents of control transformers and inductive loads. It provides protection for branch circuits in electrical distribution systems. The fiberglass body offers dimensional stability, while the silica filler ensures fast arc quenching. Rated for 600VAC/300VDC.

• Time-delay characteristics suited for high inrush currents
• Superior protection for branch circuits
• Fiberglass body for dimensional stability

Product Highlights

Mersen's ATQR fuse provides time-delay, superior protection for branch circuits, and dimensional stability in industrial settings.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATQR3/10

Technical Specifications

• Amperage: 0.3 Ampere
• Voltage: 600VAC/300VDC
• Interrupting Rating: 200kA AC/100kA DC
• Diameter: 13/32"
• Length: 1-1/2"
• Fuse Class: CC
• Fuse Type: Time-Delay
• AC Voltage Rating: 600V
• Body Material: Fiberglass
• Connection Material: Tin-Plated Copper
