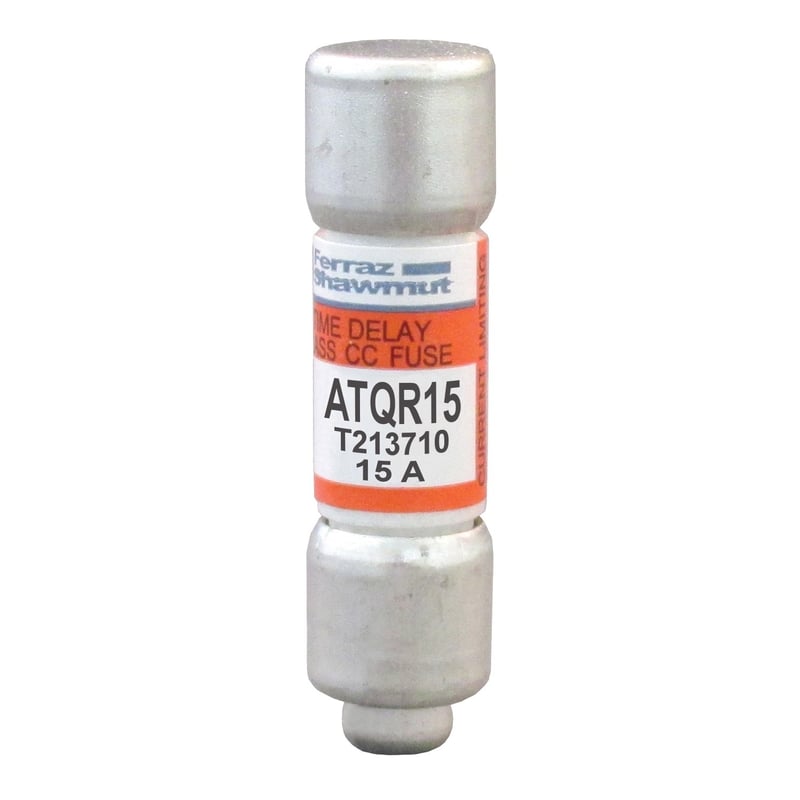

Mersen ATQR15 15 Amp, 600 Volt, Class CC, Time Delay Midget Fuse

Product Description

The Mersen ATQR15 is a 15 amp, 600 volt, Class CC time delay midget fuse. This fuse is designed to protect electrical circuits by preventing overloads and short circuits. Its time-delay feature allows it to withstand initial inrush currents from devices like motors, transformers, and solenoids without blowing. Ideal for applications that require reliable circuit protection.

• Rated for 15 amps and 600 volts.
• Time-delay characteristic for inductive loads.
• Designed for use with Class CC fuse holders.

Product Highlights

The Mersen ATQR15 fuse is suitable for a variety of applications, including control transformers and lighting systems.

Product Information

Standard Information

• Brand: Mersen
• MPN: ATQR15

Technical Specifications

• Voltage Rating: 600V
• Amperage Rating: 15 A
• Class: Class CC
• Interrupt Rating: 200
• Connection: Ferrule
• Mounting: Clip
• Special Features: Time-delay for inrush loads; current limiting; metal-embossed for traceability
• Certifications: UL, CSA
