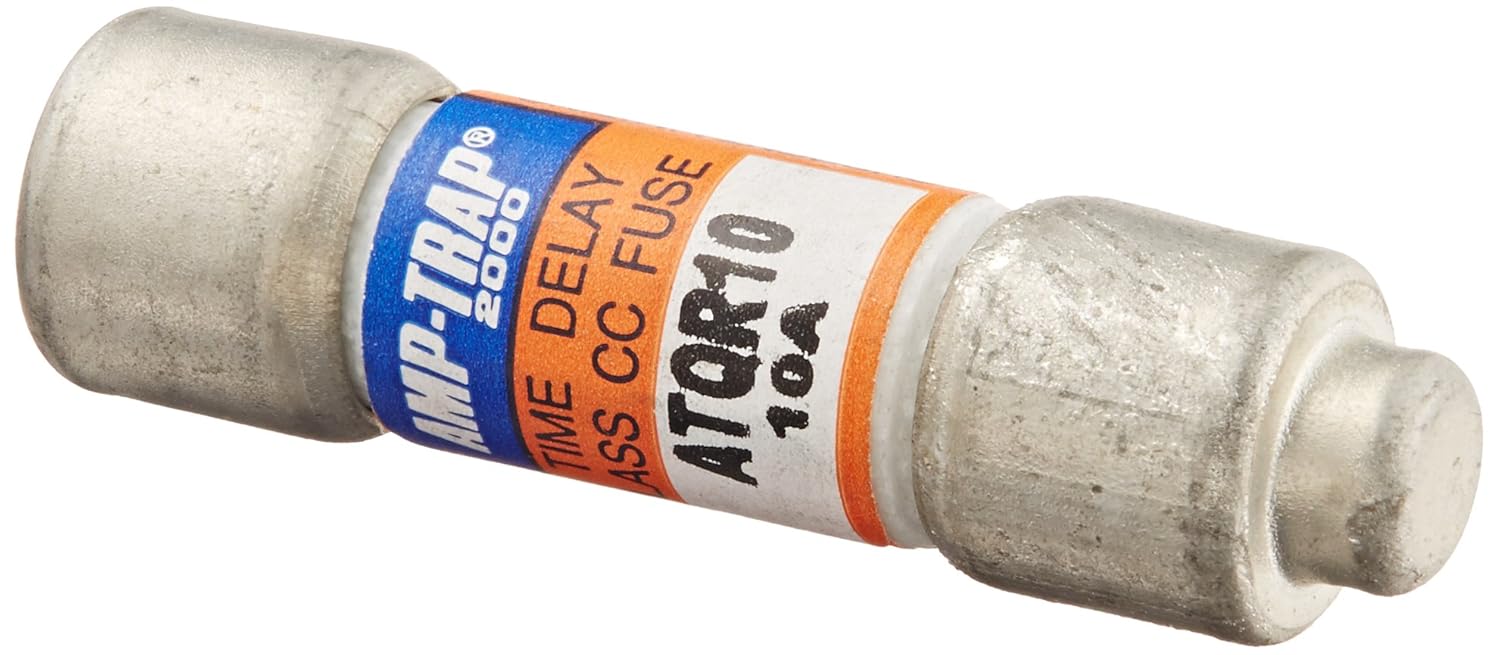

Mersen ATQR10 Time-Delay/Class CC Small-Dimension Fuse 600VAC/300VDC 10 Ampere 13/32 inches Diameter x 1-1/2 inches Length

Product Description

The MERSEN ATQR10 Time-Delay/Class CC Small-Dimension Fuse is designed for reliable circuit protection. It features a 600VAC/300VDC voltage rating and a high interrupting rating of 200kA AC/100kA DC. With a 10 Ampere current rating, this fuse is constructed from fiberglass and measures 13/32 inches in diameter and 1-1/2 inches in length. This fuse is ideally suited for high inrush currents of control transformers, solenoids, and similar inductive loads, providing superior protection for branch circuits.

• Time-Delay/Class CC characteristics for specific applications
• Rated for 600VAC/300VDC for versatile use
• High interrupting rating of 200kA AC/100kA DC for enhanced safety

Product Highlights

Designed for reliable circuit protection with high interrupting rating and time-delay characteristics for inductive loads.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATQR10
• Country of Origin: Mexico

Technical Specifications

• Input Voltage: 600VAC/300VDC
• Body Material: Fiberglass
• Current Rating: 10 Amps
• Fuse Class: CC
• Fuse Type: Small-Dimension
• Interrupting Rating AC: 200kA
• Interrupting Rating DC: 100kA
• Diameter: 13/32 inches
• Length: 1-1/2 inches
• UNSPSC Code: 39121600
• Applications: Control transformers, solenoids, inductive loads; lighting, heating & general-purpose loads, Transformer Duty
• Series: ATQR
• Element: Dual
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Characteristic: Time-Delay, Current Limiting
• Sub Brand: Amp-Trap 2000
• Made in USA: No
• Standards: UL listed to standard 248-4 File E2137, DC listed to UL standard 248, CSA certified to standard C22.2 No. 248.4, CE, CSA, UL
• Product Type: Fuse
• EAN/UPC Code: 782001906665
• Rated Voltage AC UL: 600 V
• Rated Voltage DC UL: 300 V
• Frequency: 50/60 Hz
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Terminal Material: Tin-Plated Copper
• Product Group: Low Voltage UL/CSA Fuses
• Weight: 0.017 lb
• Item Code: 4ZCF7
• Equivalent Fuse Series: FNQ-R, KLDR & ATQR
• Compatible Fuse Block Series: USCC, USFMCC
• Fuse Block Style: Rejection
• Family Series: Mersen Fuses, ATQR Series
• Trip Indicator: No
• Alarm Contacts: No
• Package Type: Cartridge
