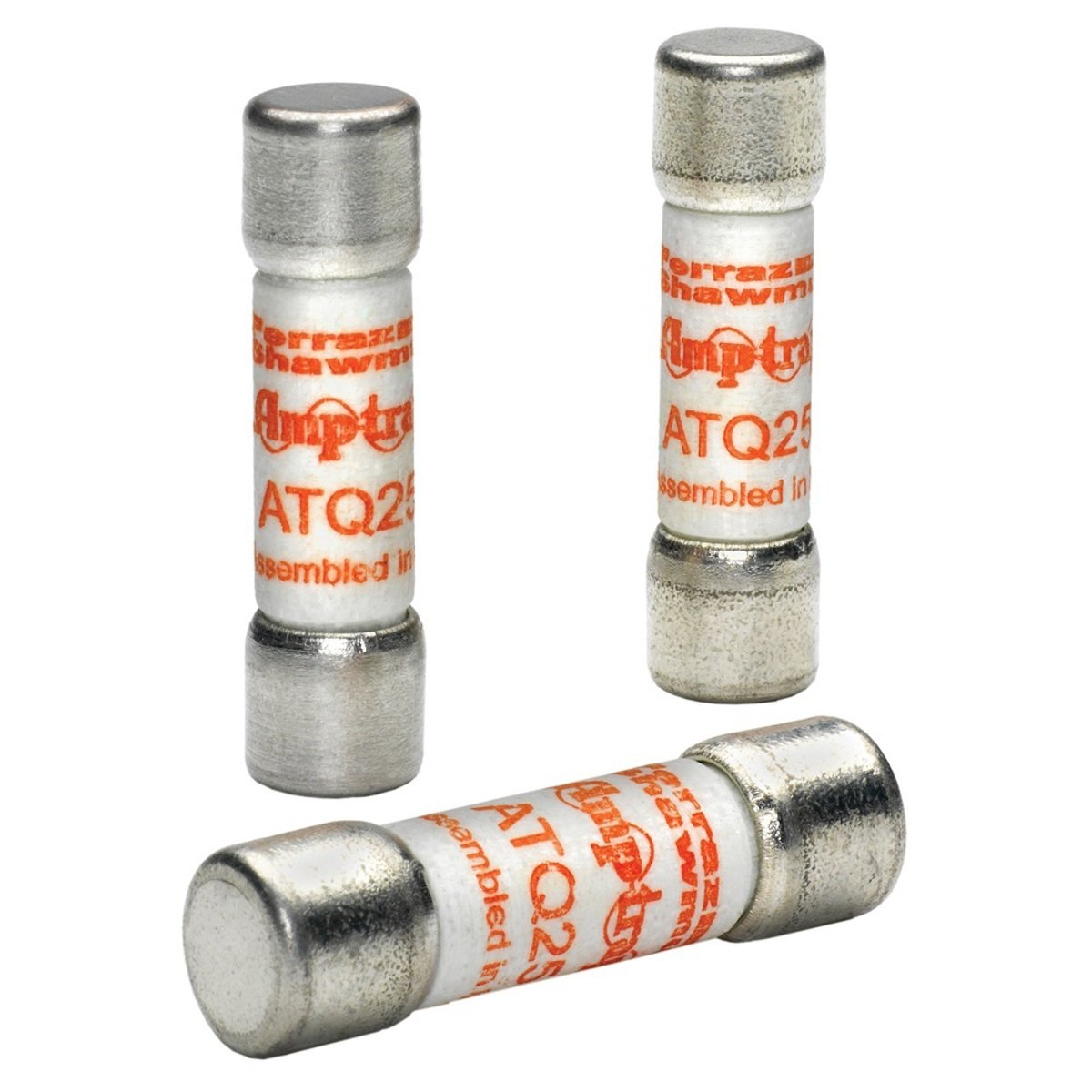

Mersen ATQ8 Midget Low Voltage Time Delay Fuse 8 Amps 500 VAC

Product Description

The Mersen ATQ8 is a midget time-delay fuse rated at 500 volts AC with a current rating of 8 amps. This fuse is designed for circuits that require supplemental protection and is suitable for applications with a maximum short circuit current of 10,000 amps. It is not intended for branch circuit protection.

• Rated for 500 volts AC and 8 amps current
• Time-delay feature for high inrush currents
• Compatible with UltraSafe fuse holders

Product Highlights

The ATQ8 fuse provides reliable circuit protection and is ideal for use in various electrical applications. It offers a cylindrical body design and can be installed using a clip mount.

Product Information

Standard Information

• Brand: Mersen
• MPN: ATQ8

Technical Specifications

• Type: Fuses
• Fuse Types: Low Voltage
• Voltage Rating: 500 VAC
• Amperage Rating: 8 A
• Interrupt Rating: 10 kA
• Dimensions: 1.5 inches long x 0.4063 inches diameter
• Mounting Type: Clip
• Response Time: 28 seconds
