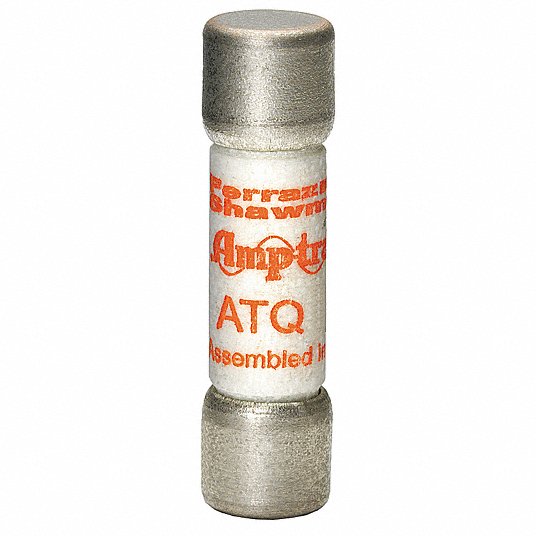

Mersen ATQ4 Amp-Trap ATQ4 Low Voltage Time Delay Fuse, 4 A

Product Description

The MERSEN ATQ4 Amp-Trap ATQ midget time-delay fuse is rated a full 500 volts AC with 42 ampere ratings from 1/10 to 30A. It is an excellent choice for supplemental protection of circuits up to 30A where the available short circuit current does not exceed 10,000A. (Not for Branch Circuit Protection).

• Numerous ratings for a wide variety of applications up to 500VAC
• Time-delay (12 seconds at 200% rating) for circuits with high inrush current
• Tin-plated Copper contact

Product Highlights

The MERSEN ATQ4 fuse is ideal for supplemental protection of lighting, solenoid, motor and transformer circuits. It has a time-delay feature for circuits with high inrush current and can be used with UltraSafe trade fuse holders.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATQ4
• Country of Origin: Mexico

Technical Specifications

• Series: ATQ
• GTIN: 00782001904241
• Body Style: Cylindrical
• Response Time: 30 sec
• Voltage Rating: 500 VAC
• Type: Time Delay
• Element: Dual
• Terminal Type: Ferrule
• Body Size: 13/32 in Dia x 1-1/2 in L
• Amperage Rating: 4 A
• Material: GMG
• Class: Midget
• Mounting Type: Clip
• Interrupt Rating: 10 kA
• Vendor SKU: ATQ4
• UPC: 782001904241
• UNSPSC: 39121609
• Standard & Approvals: UL File No. E33925, C22.2 No. 248.14, RoHS Compliant
• Application: For supplemental protection of lighting, solenoid, motor and transformer circuits
• Manufacturer: Mersen
• Brand: Mersen
• Rated voltage AC UL: 500 V
• Frequency (Hz): 50/60 Hz
• AC or DC: AC
• Fuse Class: Midget
• Speed/Characteristic: Time Delay
• AC Max I.R./Breaking Capacity: I1: 10 kA
• Connection/Terminal Material: Tin-Plated Copper
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Body/Insulating Material: GMG
• Product Weight: 0.014 lb
• Amperage: 4
• Voltage: 500
• Fuse Size: Midget
• Fuse Speed: Time Delay
• Physical Size: 13/32" x 1 1/2"
• AC Voltage Rating: 500
• AC Interrupting Rating: 10,000 AIC
• UL Listed: to Standard 248-14 File E33925
• CSA Certified: to Standard C22.2 No. 248.14
• Short Circuit Current Rating: 10 kA
• Body Material: Melamine

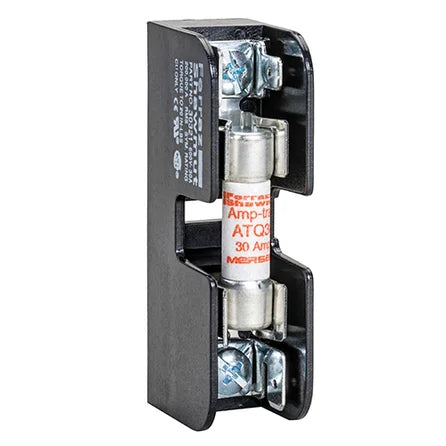

• Compatible Fuse Block Series: FEB; FEBN; Fex; GPM; MFB; USFM10; USM
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: Midget
• Interrupt Rating - AC: 10 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Time-Delay
• Standards: CSA; UL
• Visual Indication: Non-Indicating
