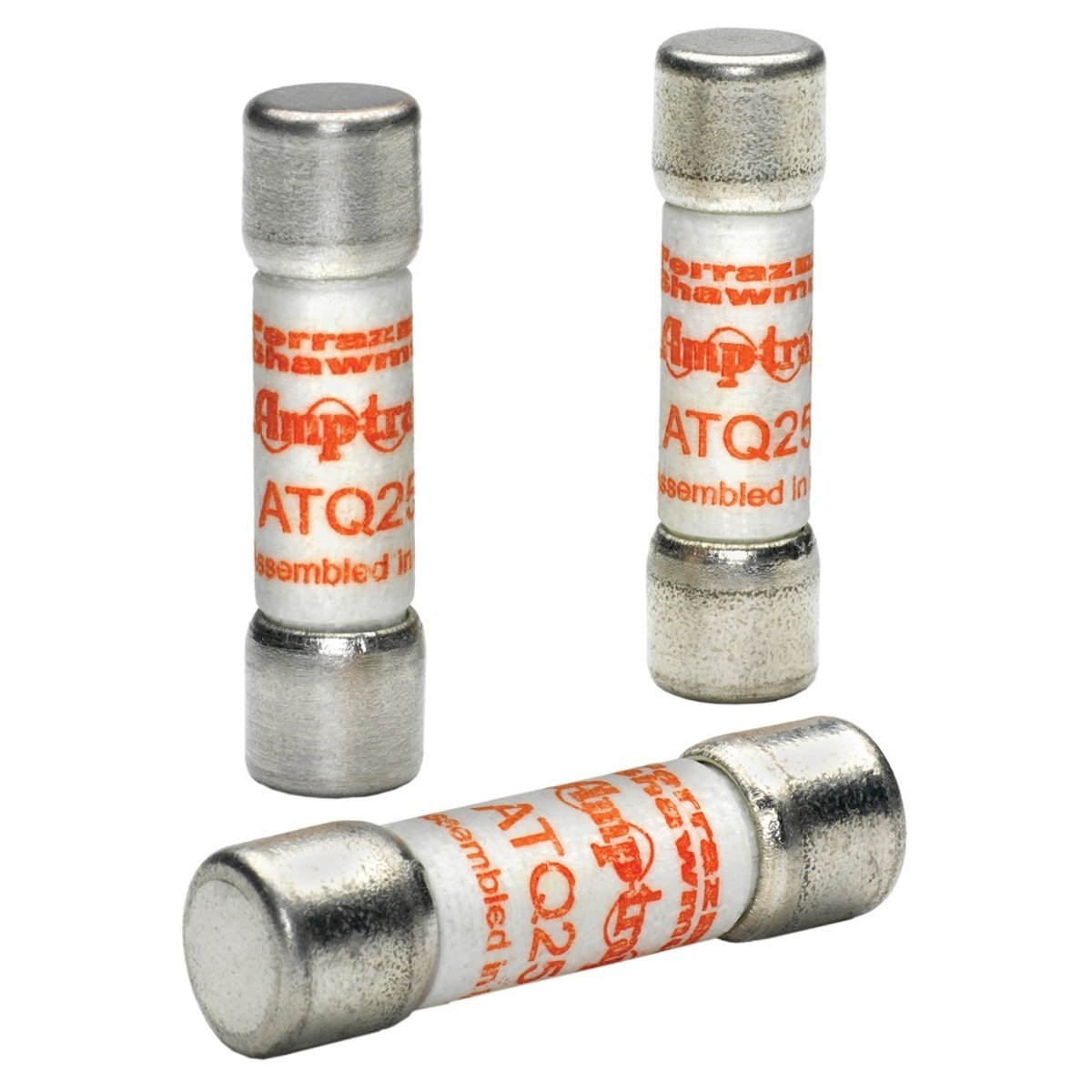

Mersen ATQ10 ATQ - Midget, Time-Delay Low Voltage UL/CSA Fuse, 10 Amps, 500V

Product Description

The Mersen ATQ10 is a midget, time-delay low voltage fuse designed for protection in electrical circuits. Rated for 10 Amps at 500 Volts AC, this fuse is suitable for applications within circuits where short circuit current does not exceed 10,000 Amps.

• Time-delay function to manage high inrush currents
• Can be used in conjunction with UltraSafe Fuse holders
• Dimensions of one and a half inches by thirteen thirty-second inches

Product Highlights

The ATQ10 provides supplemental protection for lighting, solenoid, motor, and transformer circuits.

Product Information

Standard Information

• Brand: Mersen
• MPN: ATQ10

Technical Specifications

• Voltage Rating: 500 VAC
• Amperage Rating: 10 A
• Interrupt Rating: 10 kA
• Type: Low Voltage Fuse
• Body Size: 1.5 inches x 0.406 inches
• Mounting Type: Ferrule
• Response Time: 12 seconds at 200% rating
• Local Standards: UL File No. E33925, C22.2 No. 248.14, RoHS Compliant
