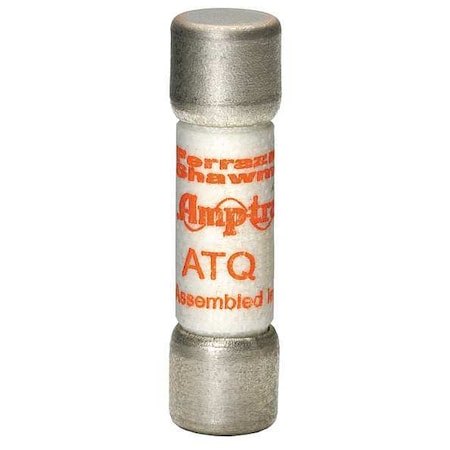

Mersen ATQ1-6/10 Fuse, Time Delay, 1-6/10A, ATQ Series, 500V AC, 1-1/2 inches L x 13/32 inches dia

Product Description

The MERSEN ATQ1-6/10 is a time-delay fuse from the ATQ series, designed for circuit protection. This midget-sized fuse has a 500V AC voltage rating and a current rating of 1-6/10A. It features a cylindrical body made of melamine and offers non-indicating visual confirmation. Equivalent to Bussmann FNQ and Littelfuse FLQ series fuses.

• Time delay fuse with a 1-6/10A current rating.
• 500V AC voltage rating and 10kA interrupt rating at 500V AC.
• Cylindrical body made of melamine with dual element construction.

Product Highlights

The MERSEN ATQ1-6/10 fuse provides reliable time-delay protection in a compact midget size. It is suitable for various applications requiring overcurrent protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATQ1-6/10
• Country of Origin: Mexico

Technical Specifications

• Amps: 1-6/10A
• Item: Fuse
• Class: Midget
• Speed: Time Delay
• Length: 1-1/2"
• Series: ATQ
• Element: Dual
• Diameter: 13/32"
• Mounting: Clip
• Fuse Amps: 1-6/10A
• Fuse Size: 1-1/2" L x 13/32" dia
• Standards: CSA, UL
• Body Style: Cylindrical
• Fuse Speed: Time Delay
• Body Material: Melamine
• Connection Type: Ferrule
• Fuse Holder Code: D
• Interrupt Rating: 10kA at 500V AC
• AC Voltage Rating: 500V AC
• DC Voltage Rating: Not Rated
• Equivalent Series: ATQ, FLQ, FNQ, HC10S
• Visual Indication: Nonindicating
• In Line Fuseholder: D
• Fuse Voltage Rating: 500VAC
• Fits Fuse Block Style: Nonrejection
• Functionally Equal To: Bussmann FNQ, Littelfuse FLQ
• Fuse Interrupt Rating: 10kA at 500VAC
• Rejection / Nonrejection: Nonrejection
• Indicating / Nonindicating: Nonindicating
• Equivalent Brand and Series: Bussmann FNQ, Littelfuse FLQ, Mersen ATQ, Power First HC10S
• Compatible Fuse Block Series: FEB, FEBN, Fex, GPM, MFB, USFM10, USM
• Green Environmental Attribute: RoHS 2011/65/EU Compliant
