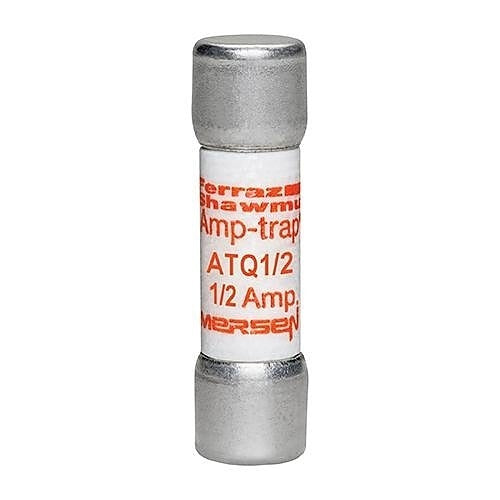

Mersen ATQ1/2 Time Delay Midget Fuse 500VAC 0.5A REPLACEMENT ATQ1/2

Product Description

Mersen ATQ1/2 provides effective supplemental protection for circuits, designed specifically to handle up to 500 volts AC with a current rating of 0.5 ampere. This product offers a reliable solution for protecting circuits with high inrush currents where the available short circuit current does not exceed 10,000 amperes.

• Offers a delay of 12 seconds at 200% load to manage transient surges.
• Compatible with UltraSafe™ fuse holders for secure and safe usage.
• Dimensions of 1 and a half inches by 13/32 inches ensure a compact fit.

Product Highlights

This midget time delay fuse by Mersen is ideal for applications like lighting circuits, solenoids, and transformers requiring precise protection against overcurrent situations.

Product Information

Standard Information

• Part Number: 79-ATQ12
• UNSPSC Code: 39121600

Technical Specifications

• Voltage: 500 VAC
• Amperage: 0.5 A
• Interrupt Rating: 10 kA
• Size: 1.5 x 0.41 inches
• Connection Type: Ferrule
• Mounting Type: Clip
• Standard: UL listed to standard 248-14, CSA Certified to Standard C22.2 No. 248.14
• Material: GMG
