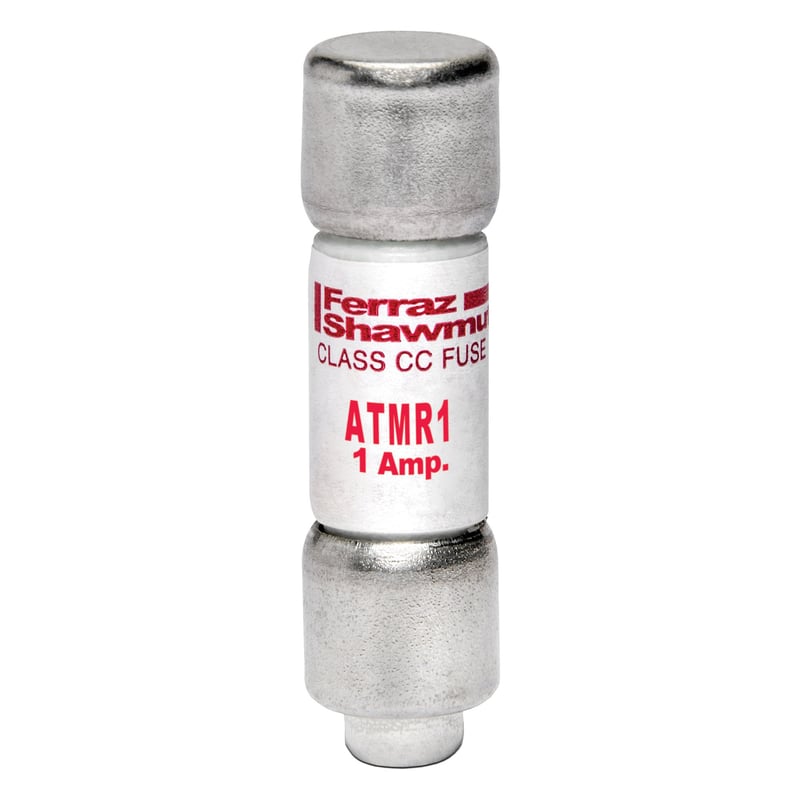

Mersen ATMR1 Low-Voltage General Purpose Fuse Fast-Acting 600V 1A

Product Description

The Mersen ATMR1 is a low-voltage general purpose fuse designed for branch circuit protection. This fast-acting fuse is suitable for both AC and DC voltage ratings up to six hundred volts and one ampere. It is compact in size, making it ideal for various control circuits and transformers.

• Rejection style design prevents incorrect replacements when used with recommended fuse blocks.
• Fiberglass construction offers stability in tough industrial settings.
• Versatile for individual components and branch circuit protection applications.

Product Highlights

Use this fuse to protect critical circuits in both residential and commercial settings. It is suitable for control circuits, lighting, and general loads.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: ATMR1

Technical Specifications

• Type: Fuses
• Fuse Types: Low Voltage
• Amperage Rating: 1 A
• Voltage Rating: 600 VAC/VDC
• Interrupt Rating: 200/100 kA
• Mounting Type: Clip
• Terminal Type: Ferrule
• Country of Origin: Mexico
