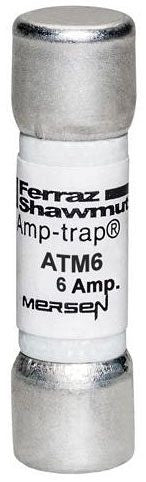

Mersen ATM6 Fast Acting Fuse 6 Amps 600V

Product Description

The Mersen ATM6 is a fast-acting low voltage fuse with a rating of six amps and a voltage capacity of six hundred volts. It is suitable for various applications in both AC and DC circuits and is designed for supplemental protection of small motors and transformers.

• Rated for use in applications up to 600V AC/DC
• 100kA interrupting rating for high inrush current situations
• Compatible with UltraSafe fuse holders, offering extended protection for capacitors

Product Highlights

This fuse is ideal for protecting small motors, transformers, and circuits that experience high inrush currents. It's a must-have for any electrical toolbox.

Product Information

Standard Information

• Manufacturer: Mersen
• Type: Fast Acting Fuse

Technical Specifications

• Voltage Rating: 600 VAC/VDC
• Amperage Rating: 6 A
• Interrupt Rating: 100 kA
• Body Type: Cylindrical
• Response Time: 48 seconds
• Mounting Type: Clip
• Terminal Type: Ferrule
• Country of Origin: Mexico
