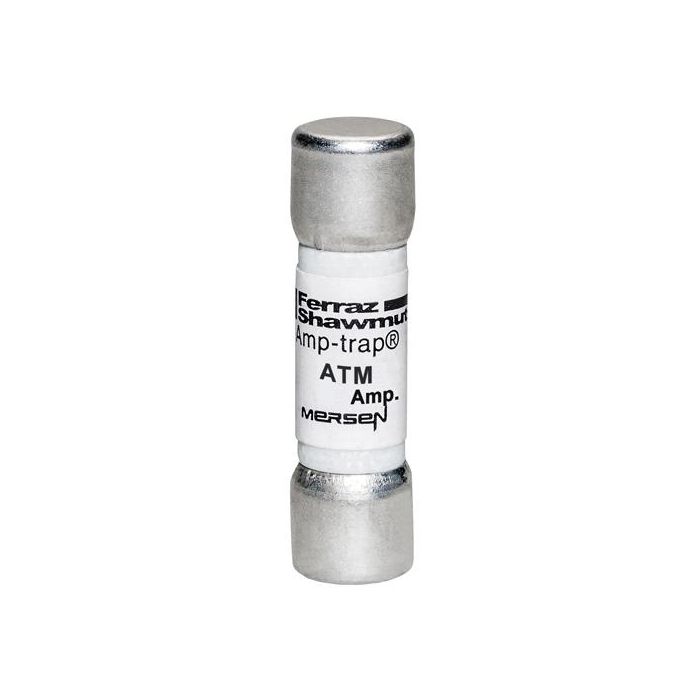

Mersen ATM3/4 Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 0.75A Ferrule

Product Description

The MERSEN ATM3/4 is a fast-acting Amp-Trap® midget fuse rated at 600 volts AC and DC with a 100kA interrupting rating. It is suitable for a wide range of applications. It is designed to protect small motors and transformers, as well as capacitors and circuits with high inrush currents.

• Rated at 600VAC and 600VDC
• Fast-Acting fuse
• 100kA interrupting rating

Product Highlights

The MERSEN ATM3/4 fuse is ideal for supplemental protection of small motors, transformers, capacitors, and circuits with high inrush currents.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATM3/4
• Country of Origin: Mexico

Technical Specifications

• Item number: ATM3/4
• Description: Fuse ATM - Midget - Fast-Acting 600VAC 600VDC 0.75A Ferrule Amp-Trap
• EAN/UPC Code: 782001900793
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 600 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 0.75 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Fuse Class: Midget
• Speed/Characteristic: Fast-Acting
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 100 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Product Weight: 0.017 lb
• AC Voltage Rating: 600 V
• DC Voltage Rating: 600 V
• AC Interrupting Rating: 100000 AIC
• DC Interrupting Rating: 100000 AIC
• Physical Size: 13/32" x 1 1/2"
• Series: ATM
• Manufacturer Part Number: ATM3/4
• Body Material: Melamine
• Compatible Fuse Block Series: ATM; FEB; FEBN; Fex; GPM; HHH; HHL; HHM; MFB; Mini Dual Fuse Tap; USFM10; USM
• Current Rating: 0.75 A
• Element: Single
• Fits Fuse Block Style: Non-Rejection
• Fuse Body Style: Cylindrical
• Interrupt Rating - AC: 100 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Fast Acting sec
• Standards: CE
• Visual Indication: Non-Indicating
• UNSPSC: 39121609
• Alternate Mfr Part Number: W213206
• Breaking Capacity: 100 kA
• Class: Midget
• Dimensions: 0.41 in H X 1.50 in L
• For Use With: Fuses
• Primary Type: Single Use Fuses
• Unit of Measure: EA
• Voltage Rating: 600 VAC/VDC
• Category: Circuit Protection
• Electrical, Specialty Fuses: Electrical, Industrial
• Voltage Rating - DC: 600 VDC
• Packaging: Bulk
• Applications: Electrical, Industrial
• Part Status: Active
• Approval Agency: CSA, UL
• Mounting Type: Requires Holder
• Breaking Capacity @ Rated Voltage: 100kA
• Fuse Type: Cartridge
• Package / Case: 5AG, 10mm x 38.1mm
• Current Rating (Amps): 750mA
• Size / Dimension: 0.394" Dia x 1.496" L (10.00mm x 38.00mm)
• Body Size: 13/32 in Dia x 1-1/2 in L
• Body Type: Cylindrical
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 100 kA
• Material: Fiber
• Rejection/Non-Rejection: Non-Rejection
• Terminal Type: Ferrule
• Type: Low Voltage
• Model: ATM3/4
