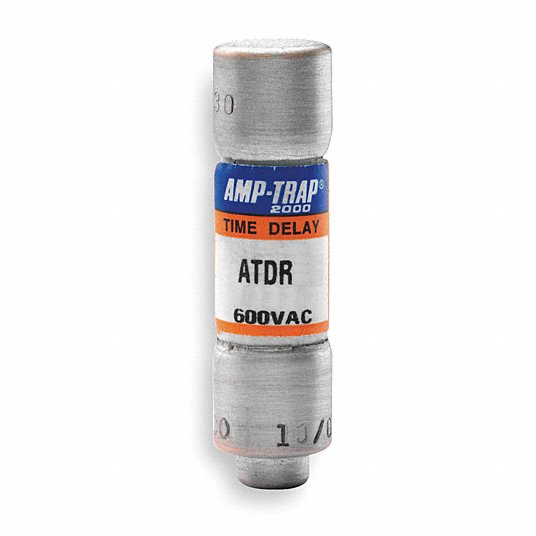

Mersen ATDR7 Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 7A Ferrule Amp-Trap 2000

Product Description

The MERSEN ATDR7 is a Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 7A Ferrule Amp-Trap 2000. Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection to your facility's increasingly sensitive branch circuit components and small motors - minimizing the risk of fault-related damage.

• Amp-Trap 2000 time-delay ATDR small-dimension fuses provide IEC Type 2 "no damage" protection
• Minimizes the risk of fault-related damage
• Best time-delay characteristics in their class

Product Highlights

It has excellent cycling ability for small motor loads. Delivers the best time-delay characteristics in its class. Provides no damage protection to sensitive branch circuit components.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATDR7
• Country of Origin: Mexico

Technical Specifications

• Item number: ATDR7
• Description: Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 7A Ferrule Amp-Trap 2000
• EAN/UPC Code: 782001901059
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 7 A
• AC or DC: AC/DC
• Fuse Class: Class CC
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Product Weight: 0.017 lb
• Voltage: 600 Volts
• Material: Copper
• Specification Met: CSA
• Maximum Current: 7 Amps
• Current Rating: 7 Amps
• Manufacturer: Mersen / Ferraz Shawmut
• Family: Amp-Trap 2000
• Amp: 7
• Volt: 600
• Category: Fuses
• Type: ATDR
• AIC Ratings: 200kA@600V
• Series: ATDR
• AC Voltage Rating: 600 V
• Body Material: Melamine
• Compatible Fuse Block Series: USCC;
• DC Voltage Rating: 300 V
• Element: Dual
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: CC
• Fuse Diameter x Length: 13/32 in x 1-1/2 in
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Time-Delay
• Standards: UL/CSA
• Visual Indication: Non-Indicating
• UNSPSC: 39121604
• MPN: ATDR7
• Application: Small Motors Contactors Lighting Heaters General Loads
• Breaking Capacity: 200 kA
• Contact Material: Tin-plated Copper
• Terminal Material: Tin-Plated Copper
• Termination: Cartridge
• Unit of Measure: EA
