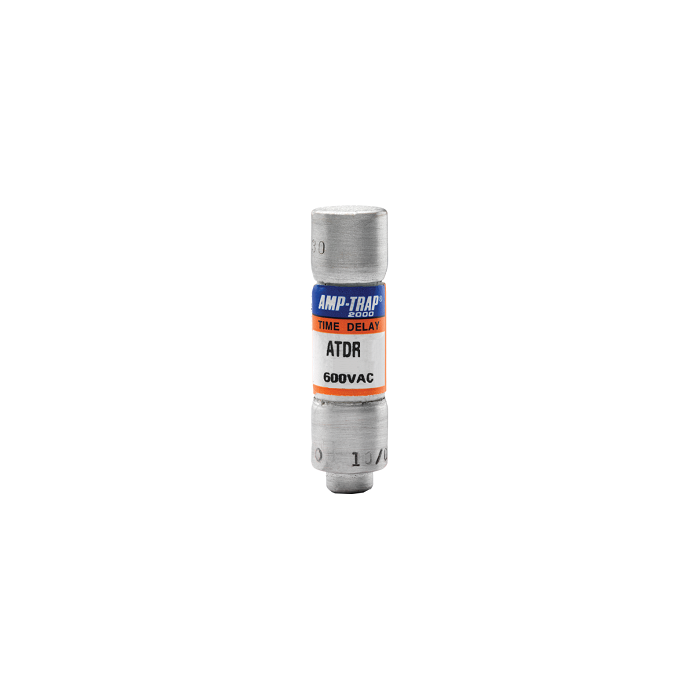

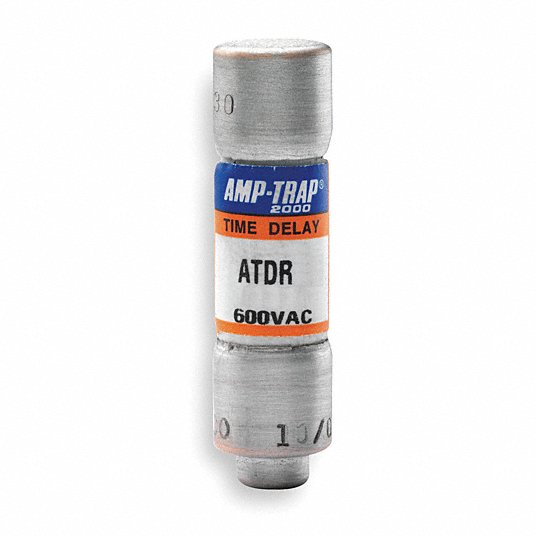

Mersen ATDR7-1/2 Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 7.5A Ferrule Amp-Trap 2000

Product Description

The MERSEN ATDR7-1/2 is a time-delay ATDR small-dimension fuse. Amp-Trap 2000 fuses provide IEC Type 2 "no damage" protection to branch circuit components and small motors, minimizing fault-related damage. ATDR Class CC fuses deliver time-delay characteristics with cycling ability for small motor loads.

• IEC Type 2 "no damage" protection
• Excellent cycling ability for small motor loads
• Time-delay characteristics

Product Highlights

Time-delay fuses tolerate brief spikes from motor starts or equipment startups. These cylindrical fuses can be easily installed or removed from clip-style holders.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: ATDR7-1/2
• Country of Origin: Mexico

Technical Specifications

• Item number: ATDR7-1/2
• Description: Fuse ATDR - Class CC - Time-Delay 600VAC 300VDC 7.5A Ferrule Amp-Trap 2000
• EAN/UPC Code: 782001908591
• Rated voltage AC UL: 600 V
• Rated voltage DC UL: 300 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 7.5 A
• AC or DC: AC/DC
• Fuse Class: Class CC
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 200 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 1.5 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Manufacturer: Mersen / Ferraz Shawmut
• Amp: 7.5
• Volt: 600
• Category: Fuses
• Type: ATDR
• AC Voltage Rating: 600 V AC
• DC Voltage Rating: 300 V DC
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Physical Size: 0.41" x 1 1/2"
• Series: ATDR
• Equivalent Fuse Series: LP-CC | CCMR | ATDR
• Manufacturer Part Number: ATDR7-1/2
• Body Material: Melamine
• Compatible Fuse Block Series: USCC; USFMCC
• Current Rating: 7.5 A
• Element: Dual
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: CC
• Fuse Diameter x Length: 13/32 in x 1-1/2 in
• Interrupt Rating - AC: 200 kA
• Interrupt Rating - DC: 100 kA
• Overall Diameter: 13/32 in
• Overall Length: 1-1/2 in
• Speed: Time-Delay
• Standards: UL/CSA
• Visual Indication: Non-Indicating
• UNSPSC: 39121604
