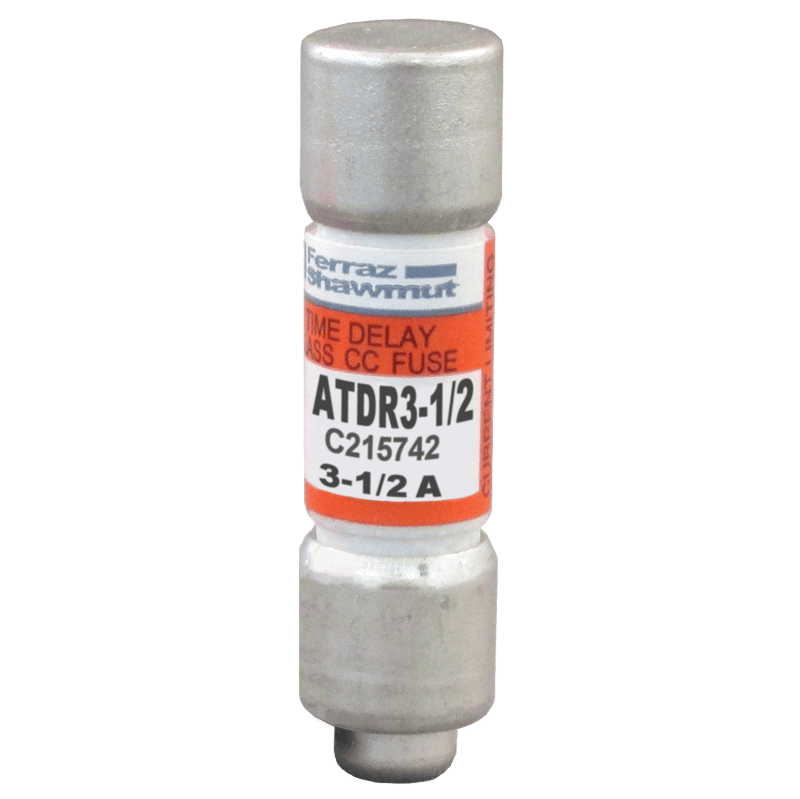

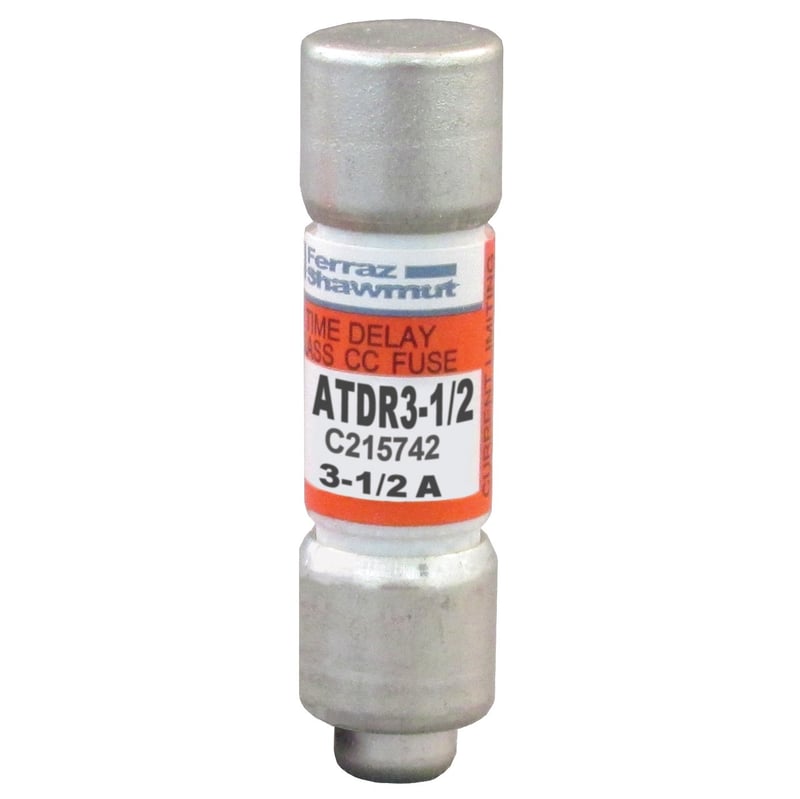

Mersen ATDR3-1/2 3.5 Amp 600 Volt Class CC Time Delay Midget Fuse

Product Description

The Mersen ATDR3-1/2 is a Class CC time-delay midget fuse designed for applications requiring reliable protection for circuits with small motors. With a rating of 3.5 Amps and a voltage of 600 Volts AC or 300 Volts DC, this fuse is suitable for various uses including lighting and heating loads. It meets UL 248-4 and CSA C22.2 No. 248.4 standards, ensuring high-quality performance.

• Class CC fuse with time-delay functionality
• Rated for 3.5 Amps and 600 Volts
• Ideal for protecting small motors and branch circuits

Product Highlights

This fuse provides excellent time-delay characteristics, reducing the risk of nuisance tripping during motor startup. Its high-grade silica filler ensures optimal current limitation, protecting sensitive equipment.

Product Information

Standard Information

• Brand: Mersen
• MPN: ATDR3-1/2

Technical Specifications

• Voltage Rating: 600V AC, 300V DC
• Amperage Rating: 3.5 A
• Type: Class CC
• Mounting: Clip
• Interrupt Rating: 200
• Certifications: CSA, UL
• Special Features: Time-delay for motor starting, current-limiting, fiberglass body for stability
