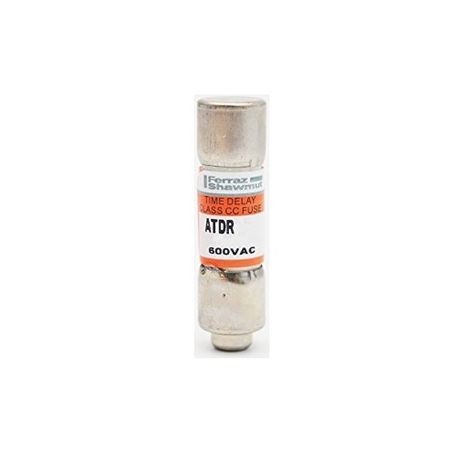

Mersen ATDR25 Low Voltage General Purpose Fuse Time-Delay 600VAC 300VDC 25A Class CC

Product Description

The Mersen ATDR25 is a robust, low voltage general purpose fuse, designed for a mix of sensitivity and enduring performance. Incorporating a time-delay feature, this fuse operates under Class CC, specifically crafted to shield small motors and branch circuits in varying electrical environments.

• Rejection-style design to avoid incorrect replacement
• Optimized for small motors and includes features for frequent motor starts/stops
• Highly current-limiting construction offering superior circuit protection

Product Highlights

Offering a formidable 600VAC and 300VDC voltage rating with a 25A amperage, fused with effective time-delay control, the Mersen ATDR25 is essential for providing optimal electrical performance and longevity.

Product Information

Standard Information

• Mounting: Clip
• Standards: UL listed to standard 248-4, CSA certified

Technical Specifications

• Body Size: 1.5 inches long by 0.41 inches diameter
• Interrupt Rating: 200 KA
• Connection Type: Ferrule
• Material: High-grade silica filler and fiberglass
• Special Features: Includes a high-visibility orange label and metal-embossed date
