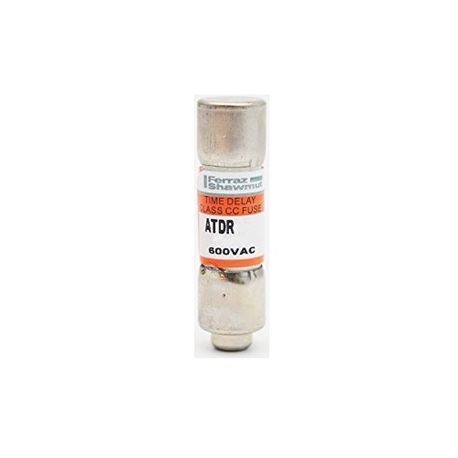

Mersen ATDR2-1/2 Fuse - Class CC - Time Delay 600VAC 300VDC 2.5A

Product Description

Experience enhanced protection with the Mersen ATDR2-1/2, a Class CC time-delay fuse designed for detailed electrical safety. Ideal for use with small motors, contactors, and general load applications, this fuse offers a thoughtful delay feature to cope with inrush currents without unnecessary trips.

• Efficiently handles up inevitable inrush currents in motor starting without causing nuisance trips.
• Current-limiting design provides low let-through currents and superior protection against short circuits.
• Designed for easy installation with a clip mounting feature and ferrule connection type.

Product Highlights

The Mersen ATDR2-1/2 stands out with its reliable time delay mechanism and robust build, suitable for challenging industrial environments. It is recognized for its high-grade silica filler that ensures rapid arc quenching and optimal current limitation.

Product Information

Standard Information

• Brand: Mersen
• MPN: ATDR2-1/2
• Category: Class CC Fuses

Technical Specifications

• Size: 1.5 x 0.41 inches
• Voltage Rating: 600 VAC
• Interrupt Rating: 200 KA
• Standard Ratings: UL listed to standard 248-4, CSA certified to C22.2 No. 248.4
