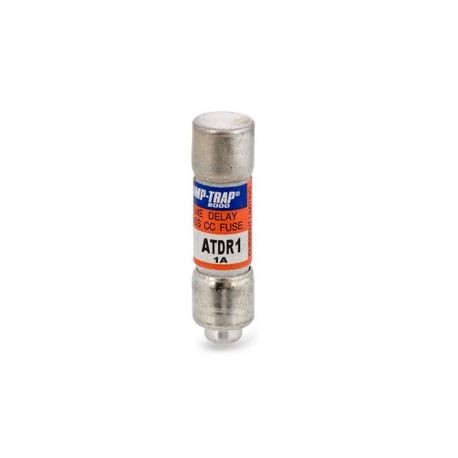

Mersen ATDR1 Low-voltage General Purpose Fuse Time-Delay 600V 1A

Product Description

Mersen ATDR1 is a low-voltage general purpose fuse designed for reliable circuit protection. This Class CC fuse operates at a voltage of six hundred volts and an amperage of one ampere. The time-delay feature allows it to handle inrush currents without nuisance opening.

• IEC Type 2 No Damage protection for sensitive equipment.
• Time-delay capabilities to prevent nuisance openings.
• Compact design suitable for various applications.

Product Highlights

This fuse is ideal for protecting small motors and branch circuits, providing high-level current-limiting performance.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: ATDR1
• Product Type: Fuse

Technical Specifications

• Voltage Rating: 600VAC, 300VDC
• Amperage Rating: 1A
• Interrupt Rating: 200KA
• Body Style: Cylindrical
• Mounting Type: Ferrule
• UL Approval: Standard 248-4
• CSA Approval: Standard C22.2 No. 248.4
• Connection Type: Ferrule
