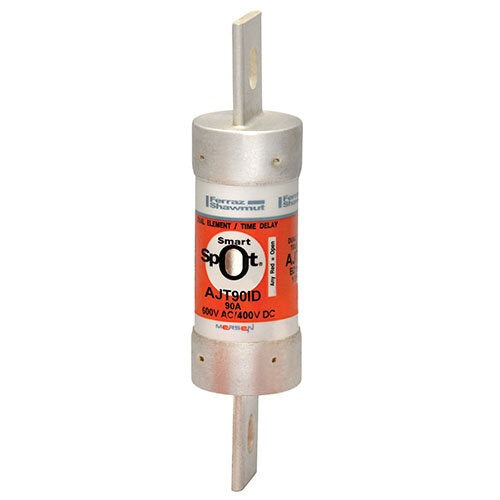

Mersen AJT90ID AJT Fuse Class J Time-Delay Blade Amp-Trap 2000 90A (5 Pack)

Product Description

The Mersen AJT90ID is a Class J AJT time-delay blade fuse rated 90 A for 600 VAC and 400 VDC, incorporating Amp-Trap 2000 construction and a SmartSpot visual open indicator. It provides IEC Type 2 No Damage protection with high current-limiting capability and a 200 kA AC breaking capacity. The blade terminal uses tin-plated copper and the fuse mounts by clip or bolting; dimensions are 4.63 in length and 1.06 in diameter.

• Time-delay characteristic suited for motor and transformer inrush currents; Ampere rating 90 A
• SmartSpot visual open fuse indicator with indication system and IEC Type 2 No Damage protection
• Blade connection with tin-plated copper terminals, clip or bolted mounting, 200 kA AC breaking capacity

Product Highlights

Class J, 90 A time-delay blade fuse with Amp-Trap 2000, SmartSpot indication, 600 VAC / 400 VDC ratings

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT90ID
