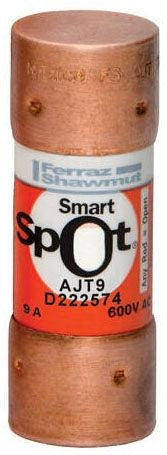

Mersen AJT9 FER Current Limiting Low Voltage North American Time Delay Fuse 9 A 600 VAC 200 kA Interrupt Class J Fuse

Product Description

The Mersen AJT9 is a current limiting low voltage fuse designed for North American use. This time delay power fuse has a rating of nine amps and operates at a voltage of six hundred VAC. Equipped with a 200 kA interrupt rating, it is ideal for applications requiring reliability and safety in circuit protection.

• Solid state SmartSpot indicator for easy detection of blown fuses
• Time delay feature for managing motor starting and transformer inrush currents
• Compact design requires less mounting space

Product Highlights

This fuse delivers essential protection for motor circuits, mains, feeders, and branch circuits. It also serves well in control panels and lighting systems, ensuring operational safety in critical applications.

Product Information

Standard Information

• Brand: Mersen
• MPN: AJT9

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 9 A
• Interrupt Rating: 200 kA
• Fuse Class: J
• Body Size: 13/16 in diameter x 2-1/4 in length
• Mounting Type: Clip
• Terminal Type: Ferrule
• Material: Fiberglass
• Application: Ideal for motor circuits, mains, feeders, lighting, transformers, and control panels
• Standards: UL 248, CSA C22.2 No. 248.8
