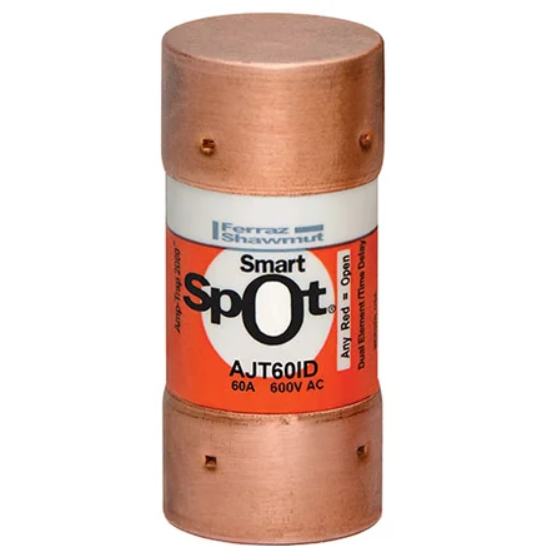

Mersen AJT60ID AJT Class J Time-Delay Fuse 60A (10 Pack) AJT60ID

Product Description

The Mersen AJT60ID is a Class J time-delay fuse rated 60 A for 600 V AC and 400 V DC, featuring a SmartSpot visual open-fuse indicator. It provides IEC Type 2 no-damage protection and Amp-Trap 2000 current-limiting performance in approximately half the mounting space of 600 V Class RK fuses. The time-delay characteristic handles motor and transformer inrush currents while offering a high interrupting rating.

• 60 A Class J time-delay fuse rated 600 V AC and 400 V DC with 200 kA AC interrupting capacity
• SmartSpot visual open-fuse indicator; ferrule terminals with tin-plated copper connections and clip mounting
• Amp-Trap 2000 current-limiting design and IEC Type 2 no-damage protection for motor, transformer, and branch-circuit applications

Product Highlights

Class J, 60 A time-delay fuse with SmartSpot indicator, Amp-Trap 2000 current-limiting, 600 V AC rating and 200 kA interrupting capacity.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT60ID
