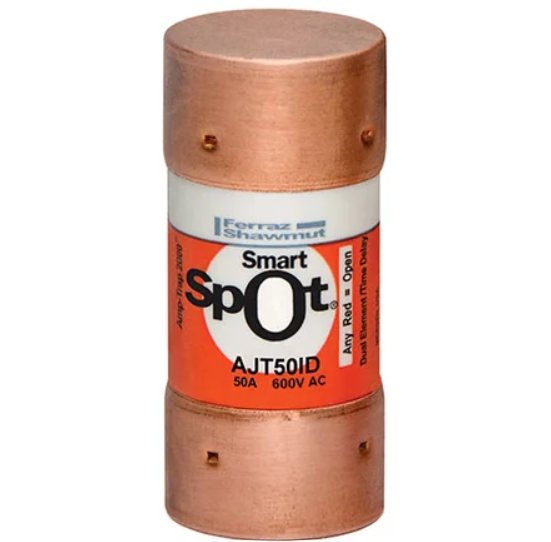

Mersen AJT50ID AJT Class J Time-Delay Fuse 50 A (Pack 10)

Product Description

The Mersen AJT50ID is a Class J time-delay fuse rated 50 A, 600 V AC and 400 V DC, designed for motor, transformer and branch-circuit protection. It incorporates Mersen SmartSpot visual open-fuse indication, ferrule tin-plated copper terminals, and the Amp-Trap 2000 design for IEC Type 2 no-damage protection. The fuse offers high interrupting capability and compact dimensions suitable where space is limited.

• 50 A Class J time-delay fuse rated 600 V AC / 400 V DC with ferrule terminals and clip mounting
• Amp-Trap 2000 design providing IEC Type 2 no-damage protection and 200 kA AC interrupting capacity
• SmartSpot visual open-fuse indicator; tin-plated copper connections; compact size (1.06 in diameter, 2.38 in length)

Product Highlights

Time-delay Class J fuse with SmartSpot indicator, high interrupting capacity, and compact Amp-Trap 2000 design.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT50ID
