Mersen AJT40ID AJT Fuse Class J Time-Delay 40A (10 Pack) AJT40ID

Product Description

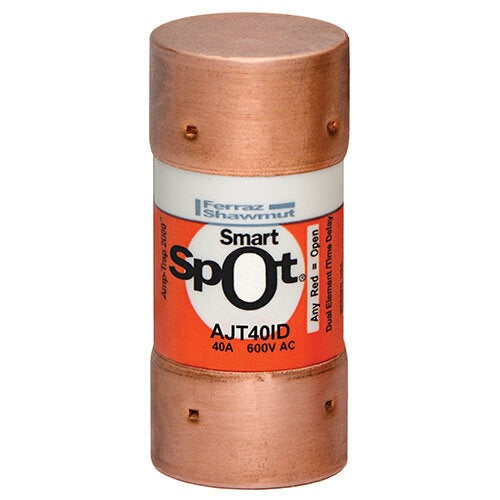

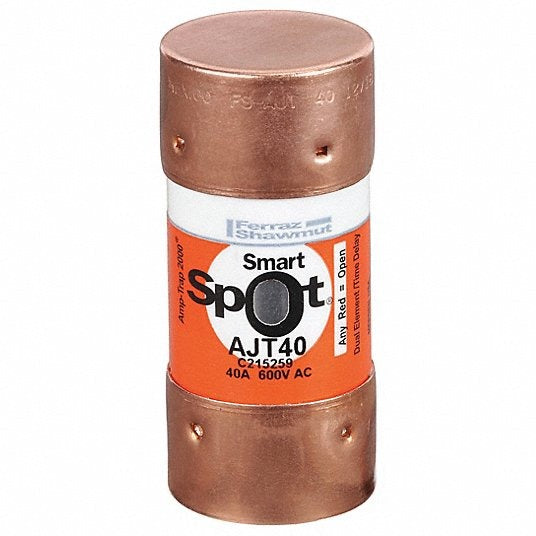

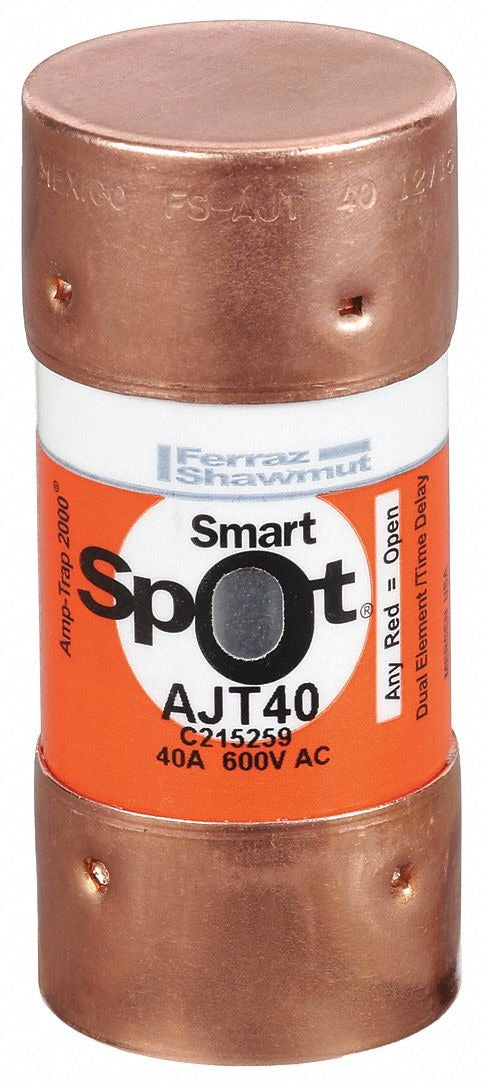

The Mersen AJT40ID is a Class J time-delay fuse rated 40 A and 600 V AC / 400 V DC, featuring a SmartSpot visual open-fuse indicator and ferrule termination. The AJT design provides IEC Type 2 No Damage protection, time-delay characteristics for motor and transformer inrush, and current-limiting performance with a 200 kA AC interrupting rating. The cylindrical body measures 1.06 in diameter by 2.38 in length and mounts in clip-style holders.

• Class J, time-delay fuse rated 40 A, 600 V AC and 400 V DC with SmartSpot visual indication
• IEC Type 2 No Damage protection and current-limiting performance with 200 kA AC interrupting rating
• Ferrule tin-plated copper terminals, clip mounting, and compact AJT size requiring roughly half the mounting space of 600 V Class RK fuses

Product Highlights

Class J, 40 A time-delay fuse with SmartSpot indicator, 600 V AC / 400 V DC rating, 200 kA AC interrupting capacity, compact AJT cylindrical form factor.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT40ID
• Country of Origin: Mexico
