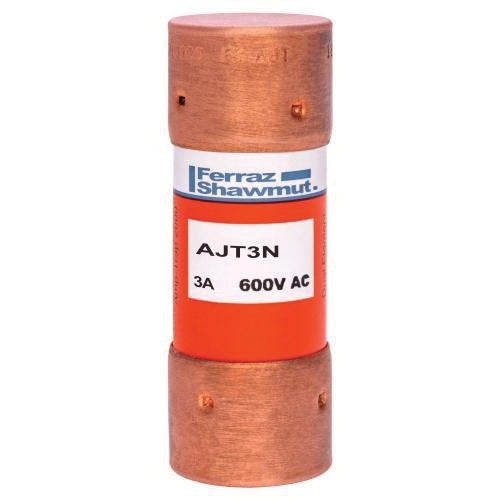

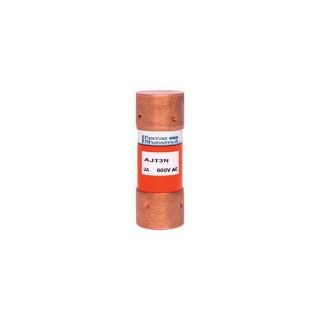

Mersen AJT3N Low-voltage General Purpose Fuse, Class J, Time-delay, 600V 3A

Product Description

Mersen AJT3N is a low-voltage general-purpose fuse designed for various applications. This Class J time-delay fuse works with a voltage rating of six hundred volts and an amperage rating of three amps. Equipped with a solid-state SmartSpot indicator, the AJT fuse enhances operational awareness by signaling an open fuse condition.

• Time-delay characteristics for motor starting and transformer inrush
• IEC Type 2 No Damage protection for all load types
• Compact design requiring less mounting space compared to traditional fuses

Product Highlights

Ideal for motor circuits, mains, feeders, branch circuits, lighting, heating, transformers, control panels, and load centers. The AJT3N fuse is an essential component in ensuring system reliability and safety.

Product Information

Standard Information

• Manufacturer: Mersen
• Part Number: AJT3N

Technical Specifications

• Type: FUSES
• Voltage Rating: 600 VAC/500 VDC
• Amperage Rating: 3 A
• Interrupt Rating: 200 kA at 600 VAC, 100 kA at 500 VDC
• Element Type: Dual
• Body Size: 13/16 inches diameter x 2-1/4 inches length
• Mounting Type: Clip
• Country of Origin: MX
