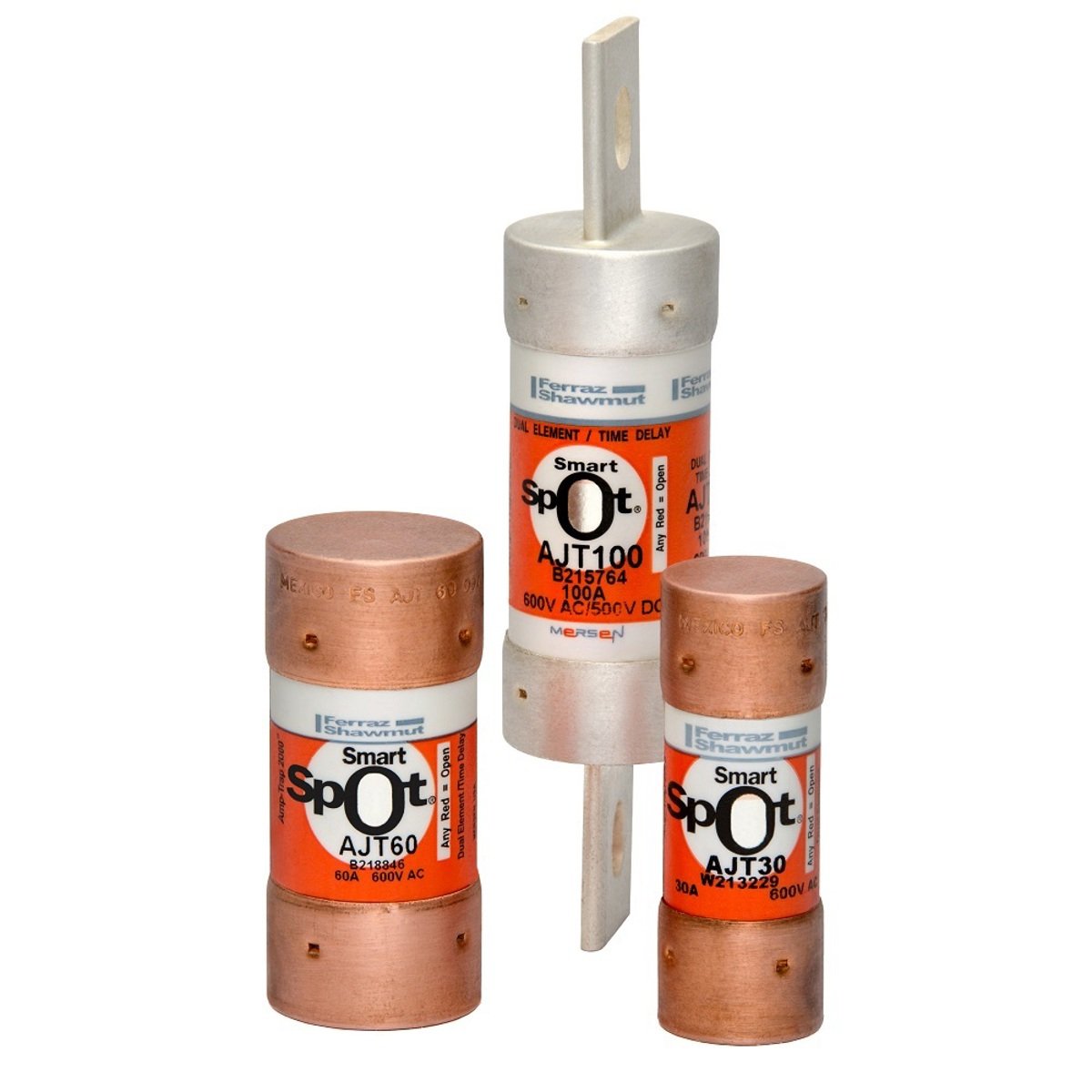

Mersen AJT30N FER Low Voltage Time Delay Power Fuse 30 A 600 VAC/500 VDC

Product Description

The Mersen Amp-Trap 2000 AJT30N is a low voltage time delay power fuse. This fuse is rated for 30 amps and operates at a voltage of six hundred VAC or five hundred VDC. The AJT30N features a maximum interrupt rating of two hundred kA AC and one hundred kA DC, making it suitable for various applications.

• Non-indicating or solid state SmartSpot visual blown fuse indicator
• Time delay for handling motor inrush currents
• Compact design that requires less mounting space

Product Highlights

This fuse is ideal for protecting motor circuits, mains, feeders, and general loads in commercial and industrial settings.

Product Information

Standard Information

• Brand: Mersen
• MPN: AJT30N

Technical Specifications

• Type: Low Voltage Time Delay
• Voltage Rating: 600 VAC/500 VDC
• Amperage Rating: 30 A
• Interrupt Rating: 200 kA AC/100 kA DC
• Frequency Rating: 50/60 Hz
• Body Size: 13/16 in Dia x 2-1/4 in L
• Body Type: Cylindrical
• Material: Glass Melamine Laminate
• Connection: Ferrule
• Mounting Type: Clip
• Country of Origin: Mexico
