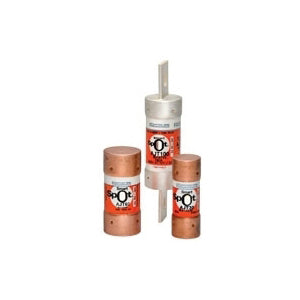

Mersen AJT3 Low Voltage UL Power Fuse 3A 600V Class J Time Delay Fuse

Product Description

The Mersen AJT3 is a low voltage UL power fuse rated at 3 Amperes and 600 Volts. It is designed as a Class J time-delay fuse suitable for various applications including motor circuits, branch circuits, and lighting. This fuse features a solid-state SmartSpot visual blown fuse indicator and is extremely current-limiting, making it effective for low peak let-thru current.

• Time-delay characteristics prevent nuisance trips during motor starting.
• Compact size allows for less mounting space.
• High visibility labeling for easy identification.

Product Highlights

The AJT3 fuse is built for reliability in harsh conditions, featuring a fiberglass body and high-grade silica filler for fast arc quenching. Its unique Class J dimensions help prevent incorrect replacements.

Product Information

Standard Information

• Brand: Mersen Electrical Power
• UPC: 782001962555

Technical Specifications

• Type: Class J
• Approval: UL 248/248-8, CSA C22.2
• Diameter: 0.81 inches
• Interrupting Rating: 200 Kiloampere (AC), 100 Kiloampere (DC)
• Terminal Type: Ferrule
• Length: 2.25 inches
