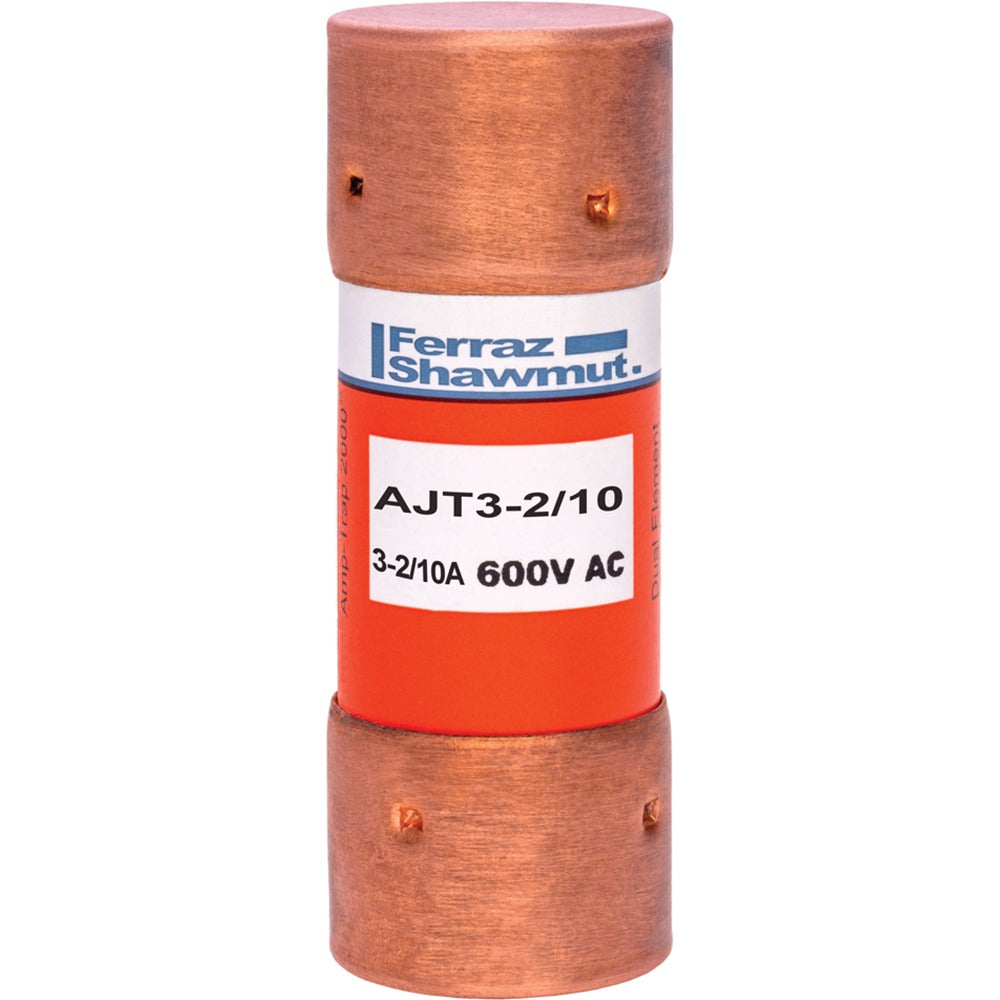

MERSEN Mersen AJT3-2/10 AJT Amp-Trap 2000 time-delay fuse 3.2 A (10 Pack)
MERSEN Mersen AJT3-2/10 AJT Amp-Trap 2000 time-delay fuse 3.2 A (10 Pack)

Mersen AJT3-2/10 AJT Amp-Trap 2000 time-delay fuse 3.2 A (10 Pack)

Brand: MERSEN
SKU: AJT3-2/10
Availability: In Stock

Ships same day if ordered by 12 pm
$46.66
$46.66
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Mersen AJT3-2/10 is an AJT Amp-Trap 2000 Class J time-delay fuse rated 3.2 A for AC and DC systems. It is rated 600 VAC and 400 VDC, provides IEC Type 2 (No Damage) protection, and offers a high breaking capacity of 200 kA. The fuse includes an optional SmartSpot visual open fuse indicator, time-delay characteristics for motor and transformer inrush, and a compact form factor for reduced mounting space.

  • Rated 3.2 A; 600 VAC and 400 VDC; time-delay characteristic for motor and transformer inrush
  • High breaking capacity 200 kA; IEC Type 2 (No Damage) protection for main, feeder, and branch circuits
  • Ferrule tin-plated copper terminals, clip mounting, product diameter 20.7 mm and length 57.2 mm

Product Highlights

Class J Amp-Trap 2000 time-delay fuse with SmartSpot indicator and 200 kA breaking capacity

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: AJT3-2/10
Technical Specifications
Brand
Mersen
Manufacturer Part Number
AJT3-2/10
Series
AJT (Amp-Trap 2000)
Fuse Class
Class J
Ampere Rating
3.2 A
Rated Voltage AC
600 V
Rated Voltage DC
400 V
Frequency
50/60 Hz
Speed/Characteristic
Time Delay
Breaking Capacity
200 kA
Mounting Type
Clip
Connection/Terminal Material
Tin-plated copper
Connection/Terminal Type
Ferrule
Body/Insulating Material
GMG
Product Diameter
20.7 mm
Product Length
57.2 mm
Sell Pack Quantity
10 EA
Product Group
Low Voltage UL/CSA Fuses
Indicator
SmartSpot visual open fuse indicator (optional non-indicating available)
Application Notes
Provides IEC Type 2 (No Damage) protection for main, feeder, and branch circuits; suitable for motor and transformer inrush currents
