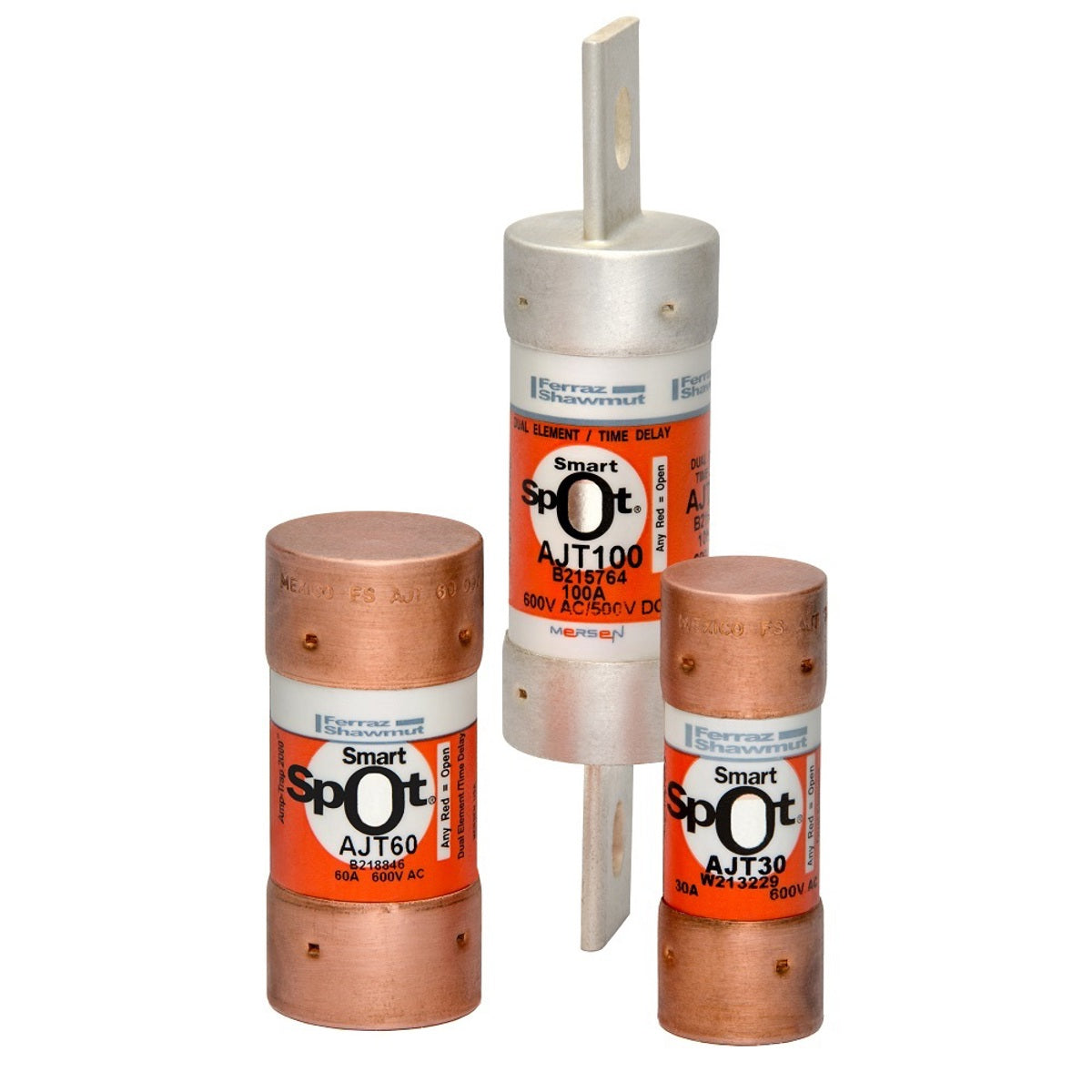

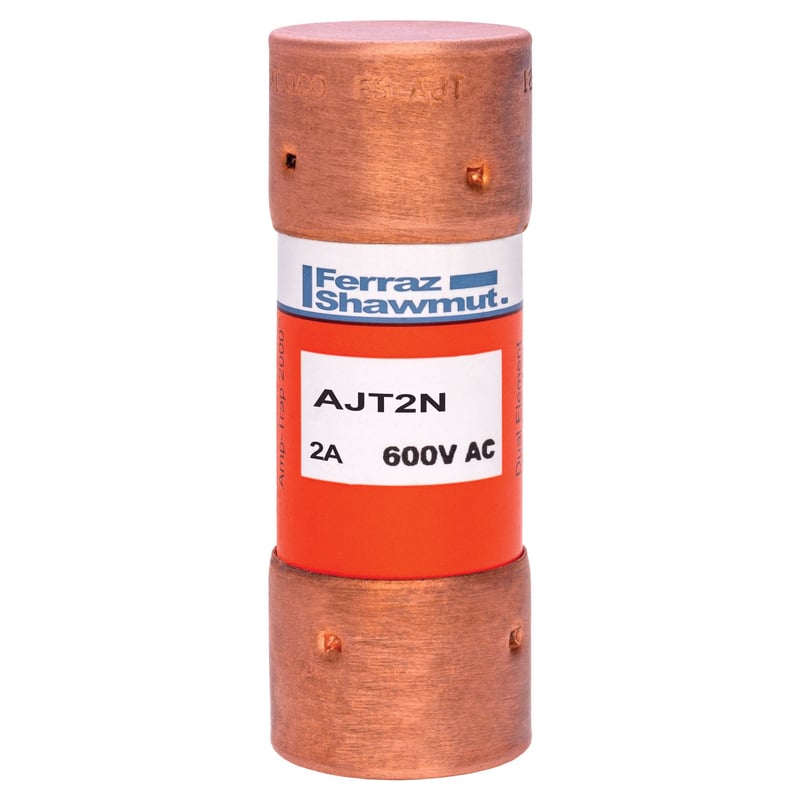

Mersen AJT2N AJT Time Delay Fuse 2 Amps 600V Class J

Product Description

The Mersen AJT2N is a Class J time-delay fuse rated at two amps and designed for 600 volts. This fuse provides IEC Type 2 protection, suitable for main, feeder, and branch circuits. Its compact design requires less mounting space compared to 600V UL Class RK fuses, ensuring an efficient installation. The time-delay feature is ideal for managing motor starting and transformer inrush currents without damage.

• Provides IEC Type 2 (No Damage) protection
• Small footprint for easy installation
• Ideal for various industrial applications including lighting and control panels

Product Highlights

Designed for use with motors, transformers, and general loads, the AJT2N fuse limits current effectively, reducing the risk of nuisance shutdowns.

Product Information

Standard Information

• Manufacturer: Mersen
• MPN: AJT2N

Technical Specifications

• Voltage Rating: 600 VAC / 500 VDC
• Amperage Rating: 2 A
• Interrupt Rating: 200 kA
• Mounting Type: Clip
• Connection Type: Ferrule
• Country of Origin: Mexico
• Sub Brand: Amp-Trap 2000
• Standard Compliance: UL 248-7, CSA Certified
