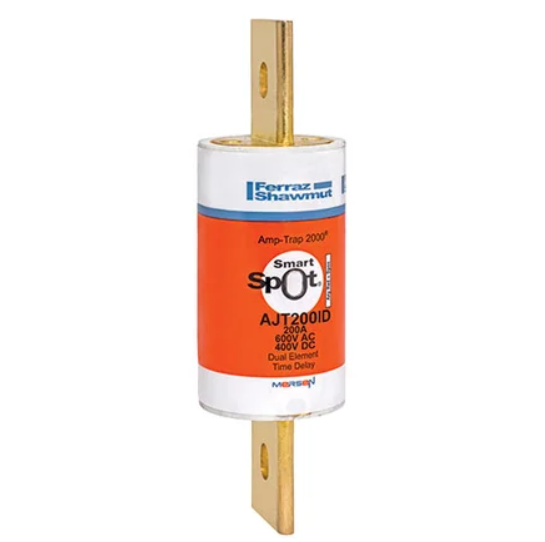

Mersen AJT200ID AJT Class J Time-Delay Fuse 200 A (Blade)

Product Description

The Mersen AJT200ID is an AJT series Class J time-delay blade fuse rated 200 A, designed for 600 V AC and 400 V DC systems and featuring SmartSpot visual open-fuse indication. It provides IEC Type 2 no-damage protection and time-delay characteristics to absorb motor and transformer inrush currents while delivering current-limiting performance in a compact, blade-style package.

• Rated 200 A, 600 V AC and 400 V DC; time-delay characteristic for motor and transformer inrush currents
• IEC Type 2 (No Damage) protection with current-limiting performance and up to 200 kA AC interrupting capacity
• Blade connection with brass terminals, SmartSpot visual open-fuse indication, mounting via clip or bolted methods

Product Highlights

200 A Class J time-delay blade fuse; 600 VAC / 400 VDC rating; SmartSpot indication; IEC Type 2 protection; 200 kA AC interrupting capacity.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT200ID
