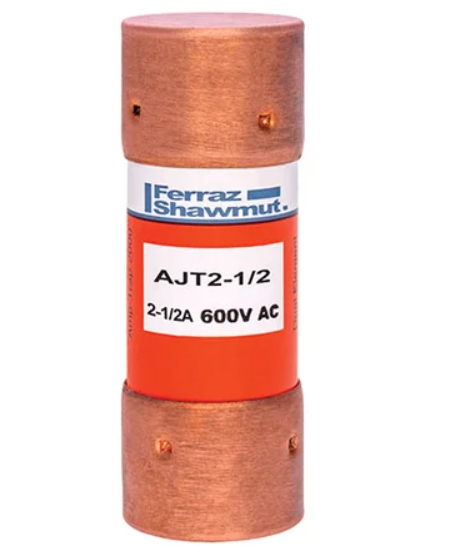

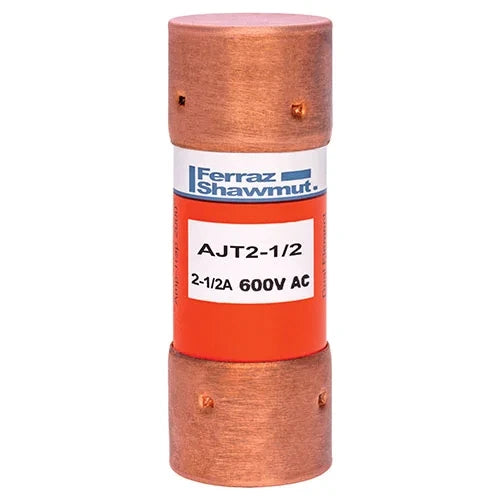

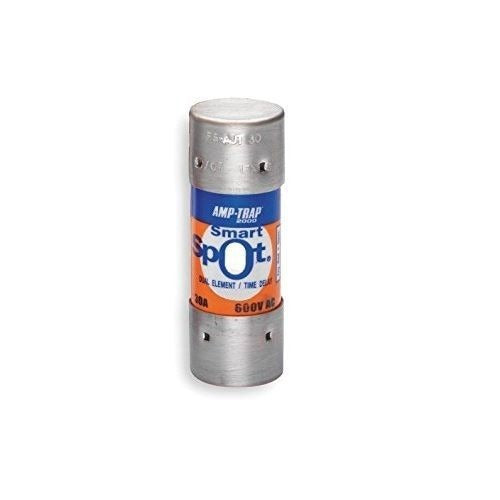

Mersen AJT2-1/2 Amp-Trap 2000 SmartSpot Time-Delay Fuse 2.5 A 600 VAC (13/16 in x 2-1/4 in)

Brand: MERSEN
SKU: AJT2-1/2
Availability: In Stock

Ships same day if ordered by 12 pm
$42.71
$42.71
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mersen AJT2-1/2 is an Amp-Trap 2000 SmartSpot Class J time-delay power fuse rated 2.5 A and 600 VAC for current-limiting protection in mains, feeders, motor and transformer circuits. It delivers IEC Type 2 no-damage protection and high interrupting capacity in a cylindrical, space-saving 13/16 in x 2-1/4 in body. The fuse uses a dual element and GMG insulating material.

  • Time-delay Class J design handles motor and transformer inrush while providing current-limiting protection
  • Solid-state SmartSpot visual blown fuse indicator for visual open-fuse identification
  • High interrupting rating (200 kA AC / 100 kA DC) with tin-plated copper ferrule terminals

Product Highlights

Class J, time-delay, current-limiting fuse with SmartSpot indicator; 2.5 A, 600 VAC; 200 kA AC / 100 kA DC interrupting rating; 13/16 in x 2-1/4 in cylindrical body

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: AJT2-1/2
  • Country of Origin: China
Technical Specifications
Manufacturer
Mersen
Brand
Mersen
Model / MPN
AJT2-1/2
Series
AJT (Amp-Trap 2000 SmartSpot)
Type
Time Delay
Fuse Class
Class J
Ampere Rating
2.5 A
Voltage Rating
600 VAC; 500 VDC
Interrupt Rating
200 kA AC / 100 kA DC
Mounting Type
Holder / Clip
Terminal Type
Ferrule
Connection/Terminal Material
Tin-plated copper
Body Style
Cylindrical
Body Size
13/16 in diameter x 2-1/4 in length
Element
Dual
Body/Insulating Material
GMG (fiberglass body)
Frequency
50/60 Hz
Product Diameter
0.81 in
Product Length
2.25 in
Product Weight
0.097 lb
GTIN / UPC
782001962784
Certifications
UL 248-8 (UL File No. E2137); CSA C22.2 No. 248.8; IEC 269-2-1; RoHS Compliant
Applications
Motor circuits, mains, feeders, branch circuits, lighting, heaters, transformers, control panels, circuit breaker back-up, bus duct, load centers
Features
SmartSpot visual blown fuse indicator; time-delay for motor and transformer inrush; extremely current-limiting; compact footprint; arc flash mitigating
