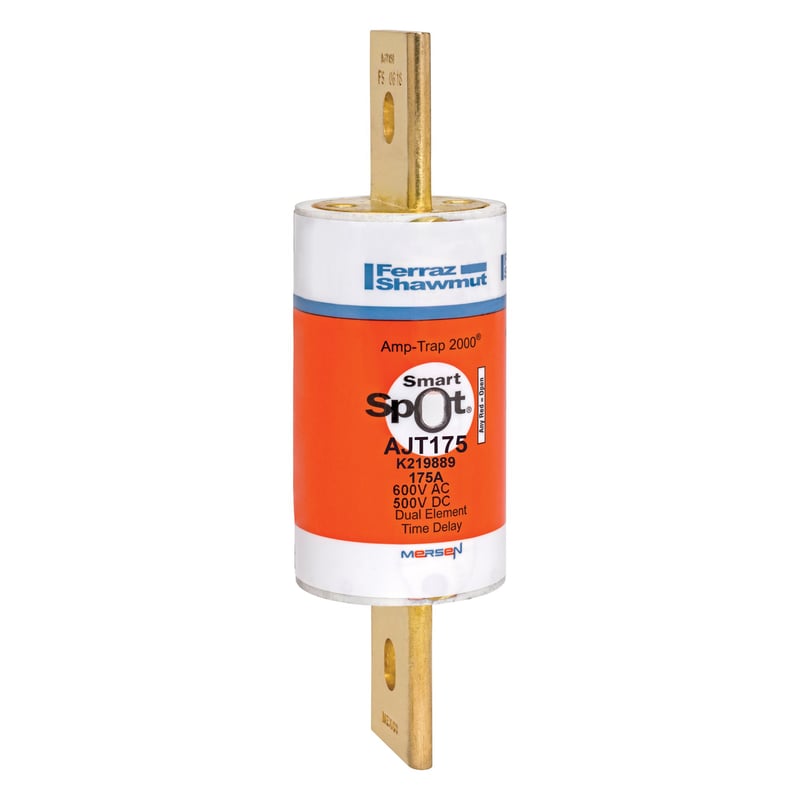

Mersen AJT175 FER Current Limiting Low Voltage North American Time Delay Fuse, 175 A, 600 VAC, 200 kA Interrupt, J Class

Product Description

The Mersen AJT175 FER is a current limiting low voltage fuse designed for use in motor circuits and branch circuits. This time delay fuse operates at 175 amps and is rated for 600 VAC with a 200 kA interrupt capacity. Its cylindrical body measures one and five-eighths inches in diameter by five and three-quarters inches long, making it compact and space-efficient.

• Time delay characteristics prevent nuisance trips
• Solid state SmartSpot indicator for visual blown fuse indication
• IEC Type 2 no damage protection for various load types

Product Highlights

The AJT175 provides superior current limiting capability ideal for applications involving transformers and motors. Its design allows for easier integration into existing systems due to its smaller footprint compared to conventional fuses.

Product Information

Standard Information

• Brand: Mersen
• MPN: AJT175

Technical Specifications

• Voltage Rating: 600 VAC
• Amperage Rating: 175 A
• Interrupt Rating: 200 kA
• Body Size: 1-5/8 in Dia x 5-3/4 in L
• Material: Fiberglass
• Mounting Type: Clip
• Terminal Type: Blade
• Class: J
