Mersen AJT100ID AJT Class J Time-Delay Fuse 100 A (5 Pack)

Product Description

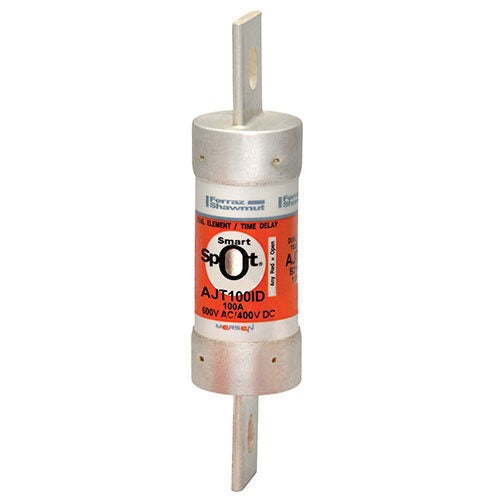

The Mersen AJT100ID is an AJT series Class J time-delay blade fuse rated 100 A, 600 VAC and 400 VDC with Amp-Trap 2000 technology and a SmartSpot visual open-fuse indicator. It provides IEC Type 2 No Damage protection with a 200 kA interrupting rating and tin-plated copper blade terminals, and is suited for industrial power distribution and protection against motor and transformer inrush currents.

• Rated 600 VAC / 400 VDC, 100 A with 200 kA interrupting capacity
• Amp-Trap 2000 technology with SmartSpot visual open-fuse indication and time-delay characteristic
• Blade terminal with tin-plated copper connections; mounting via clip or bolted; dimensions 117.6 mm length × 27 mm diameter

Product Highlights

Class J AJT blade fuse, 100 A, time-delay, Amp-Trap 2000 with SmartSpot indicator; 600 VAC/400 VDC rated, 200 kA interrupting capacity; blade terminals, 117.6 mm length, 27 mm diameter.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT100ID
• Country of Origin: Canada
