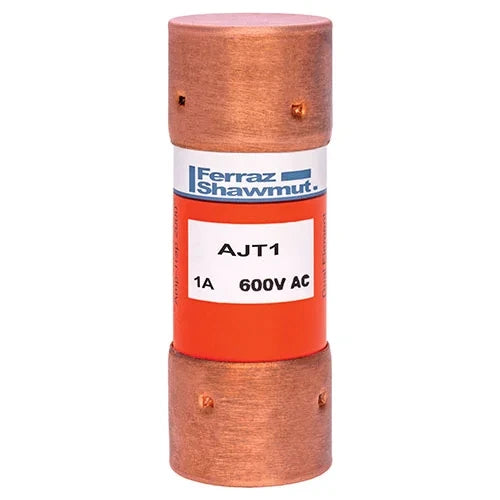

Mersen AJT1 Amp-Trap 2000 Class J time-delay fuse 1 A (13/16 in Dia x 2-1/4 in) Replacement AJT1N

Brand: MERSEN
SKU: AJT1
Availability: In Stock

Ships same day if ordered by 12 pm
$42.71
$42.71
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Mersen AJT1 is an Amp-Trap 2000 Class J time-delay, current-limiting fuse rated 1 A and 600 VAC with a 400 VDC rating. It provides IEC Type 2 (No Damage) protection for mains, feeders, and branch circuits, handles motor and transformer inrush currents, and features a SmartSpot solid-state visual blown fuse indicator. The cylindrical fuse measures 13/16 in diameter by 2-1/4 in length and has a 200 kA AC interrupting rating.

  • Amp-Trap 2000 Class J time-delay fuse, 1 A; rated 600 VAC and 400 VDC; AC/DC compatibility
  • Solid-state SmartSpot visual blown fuse indicator; ferrule terminal with tin-plated copper connection; compact 13/16 in x 2-1/4 in cylindrical body
  • Current-limiting design with 200 kA AC and 100 kA DC interrupting ratings; IEC Type 2 protection for motor circuits, mains, feeders, and branch circuits

Product Highlights

Class J time-delay, 1 A, 600 VAC; SmartSpot indicator; 200 kA AC interrupting; compact 13/16 x 2-1/4 in

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: AJT1
Technical Specifications
Brand
Mersen
Manufacturer Part Number
AJT1
Series
AJT
Product Name
Amp-Trap 2000 AJT time-delay fuse
Fuse Class
Class J
Type
Time delay, current limiting
Ampere Rating
1 A
Rated Voltage AC
600 VAC
Rated Voltage DC
400 VDC
AC/DC
AC/DC
Interrupting Rating (AC)
200 kA
Interrupting Rating (DC)
100 kA
Body Size / Dimensions
13/16 in dia x 2-1/4 in L (0.8125 in x 2.25 in / 20.7 mm x 57.2 mm)
Body Style
Cylindrical
Mounting Type
Holder
Terminal Type
Ferrule
Connection Material
Tin-plated copper
Body Material
GMG (fiberglass insulating material)
Element
Dual
Frequency
50/60 Hz
Product Weight
0.044 kg (0.097 lb)
Standards and Approvals
UL 248-8 (File E2137), UL 248 (DC listed), CSA C22.2 No. 248.8, IEC 269-2-1, RoHS compliant
Applications
Motor circuits, mains, feeders, branch circuits, lighting, heaters, transformers, control panels, circuit breaker back-up, bus duct, load centers
UPC
782001962531
GTIN
00782001962531
