Mersen AJT1-8/10 AJT Class J time-delay 1.8 A (10 Pack) Bussmann LPJ-SP

Brand: MERSEN
SKU: AJT1-8/10
Availability: In Stock

Ships same day if ordered by 12 pm
$44.30
$44.30
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

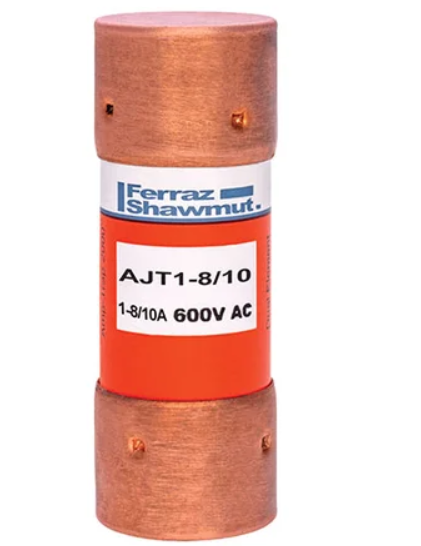

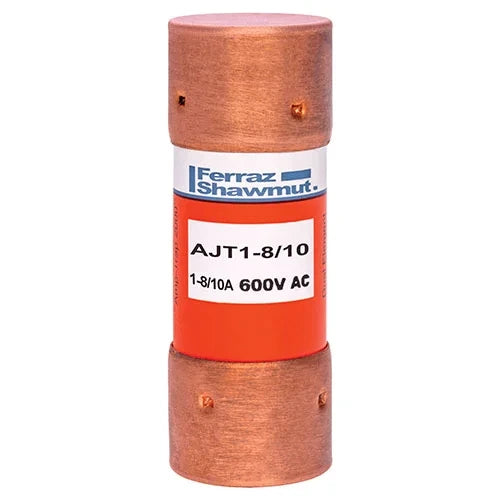

Mersen AJT1-8/10 is an Amp-Trap 2000 Class J time-delay fuse rated 1.8 A, 600 VAC and 400 VDC, designed for main, feeder, and branch circuit protection. It provides IEC Type 2 No Damage protection and time-delay characteristics to handle motor and transformer inrush currents while delivering current-limiting performance. The fuse features a compact 0.81 in x 2.25 in cartridge design, a ferrule terminal, and an optional SmartSpot visual blown fuse indicator.

  • Current rating 1.8 A; voltage rating 600 VAC / 400 VDC; frequency 50/60 Hz
  • Interrupting rating 200 kA AC and 100 kA DC with IEC Type 2 No Damage protection
  • Amp-Trap 2000 design, time-delay characteristic for motor/transformer inrush, ferrule terminal and clip mounting; optional SmartSpot visual indicator

Product Highlights

Amp-Trap 2000 Class J time-delay fuse, 1.8 A, 600 VAC/400 VDC, compact cartridge (0.81 in x 2.25 in) with 200 kA AC interrupting rating and IEC Type 2 protection

Product Information

Standard Information

  • Brand: MERSEN
  • Manufacturer Part Number: AJT1-8/10
Technical Specifications
Brand
Mersen
Manufacturer Part Number
AJT1-8/10
Series
Amp-Trap 2000
Type
Time Delay
Fuse Class
Class J
Current Rating
1.8 A
Voltage Rating AC
600 VAC
Voltage Rating DC
400 VDC
Frequency
50/60 Hz
Interrupting Rating AC
200 kA
Interrupting Rating DC
100 kA
Characteristic/Speed
Time Delay
IEC Protection
IEC Type 2 (No Damage)
Approvals/Certifications
UL Listed to Standard 248-8 (File E2137); CSA Certified to C22.2 No. 248.8; RoHS compliant
Mounting Type
Clip
Connection/Terminal Type
Ferrule
Connection/Terminal Material
Tin-plated copper
Visual Indicator
SmartSpot visual open fuse indicator (optional)
Body/Insulating Material
GMG
Dimensions
0.81 in x 2.25 in (20.57 x 57.15 mm)
Weight
0.097 lb
Product Group
Low Voltage UL/CSA Fuses
Sell Pack Quantity
10 EA
EAN/UPC Code
782001962760
Product Diameter
0.81 in
Product Length
2.25 in
Substitute/Replacements
Bussmann LPJ-SP
