Mersen AJT1-6/10 Class J Time-Delay Fuse 1.6 A (10 Pack) Bussmann LPJ-SP

Product Description

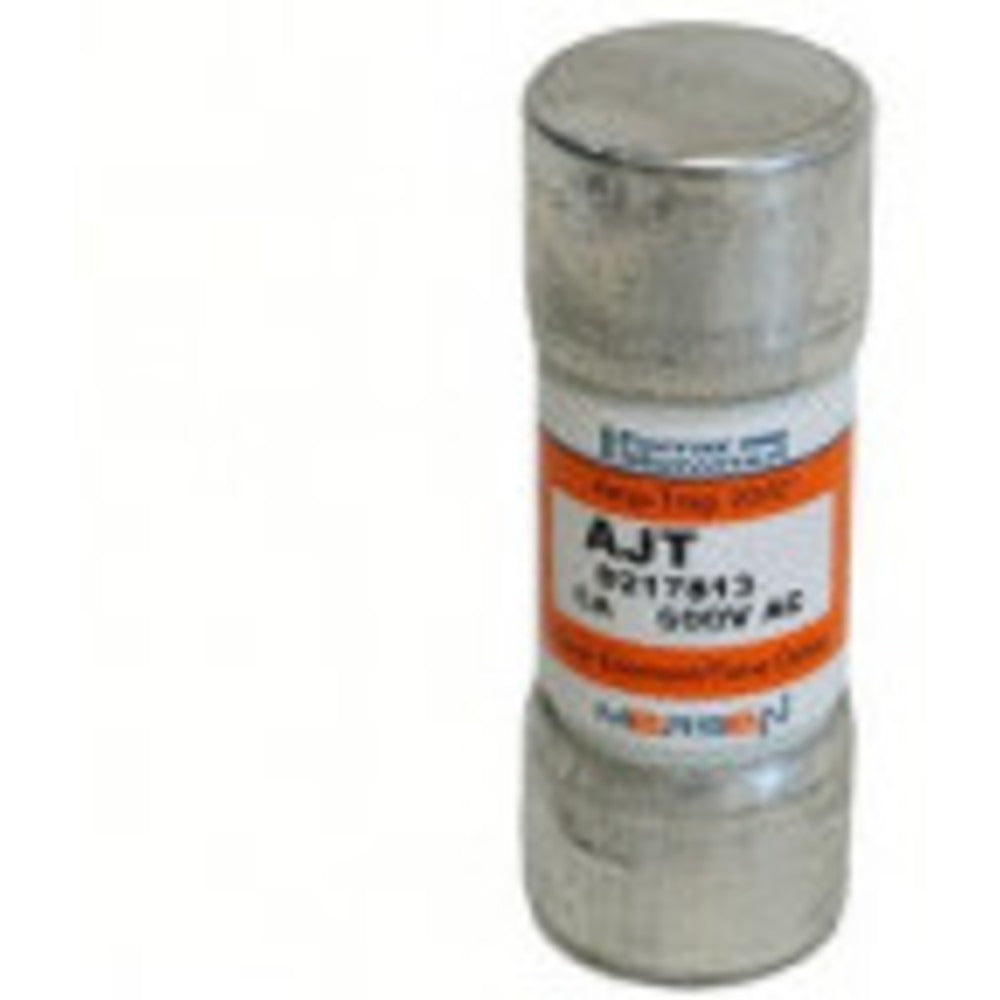

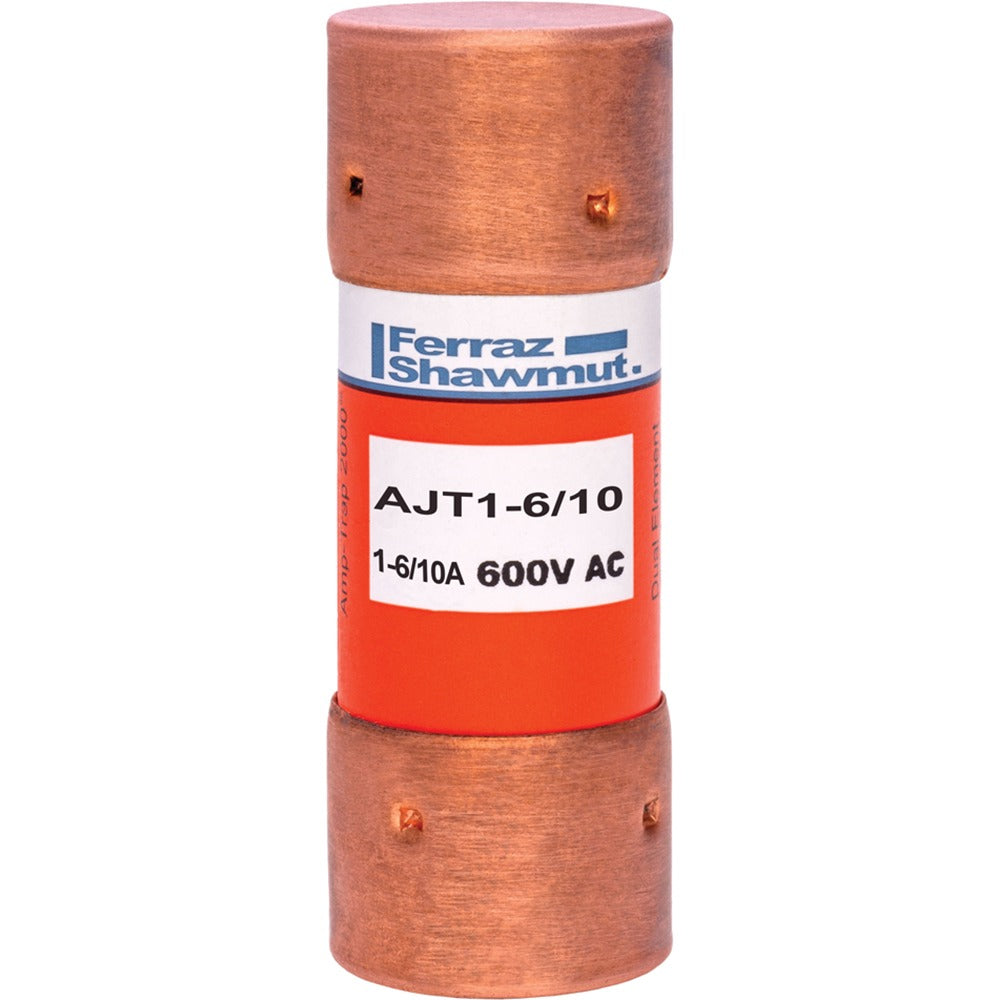

Mersen AJT1-6/10 is a Class J Amp-Trap 2000 time-delay cartridge fuse rated 1.6 A and 600 V AC (400 V DC). It provides IEC Type 2 no-damage protection for main, feeder, and branch circuits and is suited for applications with motor and transformer inrush currents. The fuse includes a SmartSpot visual open fuse indicator, tin-plated copper ferrule terminals, and a compact cartridge form factor occupying reduced mounting space.

• Time-delay characteristic handles motor and transformer inrush currents and provides superior current-limiting capability
• IEC Type 2 (no-damage) protection with 200 kA AC interrupting rating
• SmartSpot visual open fuse indicator; ferrule connection with tin-plated copper terminals; compact 0.81 in x 2.25 in cartridge

Product Highlights

Class J time-delay cartridge fuse, 1.6 A, 600 VAC/400 VDC, 200 kA AC interrupting rating, SmartSpot indicator, compact size

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AJT1-6/10
