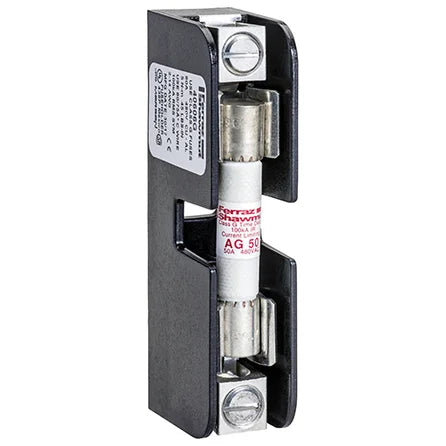

Mersen AG50 Fuse AG - Class G 480VAC 50A Time Delay Ferrule Amp-Trap

Product Description

The Mersen AG50 Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits. It has an AC voltage rating of 480V and an amperage of 50A.

• Time Delay
• UL Listed Class G fuses
• Branch-circuit protection for lighting, heating, and appliance circuits

Product Highlights

The Mersen AG50 fuse is ideal for lighting, heating, and appliance circuits. It is UL Listed and CSA Certified.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AG50
• Country of Origin: Mexico

Technical Specifications

• Item number: AG50
• Description: Fuse AG - Class G 480VAC 50A Time Delay Ferrule Amp-Trap
• EAN/UPC Code: 782001905217
• Rated voltage AC UL: 480 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 50 A
• ROHS Compliant: Yes
• AC or DC: AC
• Fuse Class: Class G
• Speed/Characteristic: Time Delay
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 100 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.41 in
• Product Length: 2.25 in
• Product group: Low Voltage UL/CSA Fuses
• Body/Insulating Material: GMG
• Product Weight: 0.037 lb
• Manufacturer: Mersen / Ferraz Shawmut
• Family: Amp-Trap
• Amp: 50
• Volt: 480
• Category: Fuses
• Type: AG
• AIC Ratings: 100kA@480V
• Brand: MERSEN
• Series: AG
• Manufacturer Part Number: AG50
• AC Voltage Rating: 480 V AC
• Body Material: Fiberglass
• Current Rating: 50 A
• Element: Dual
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: G
• Fuse Diameter: 13/32 in
• Fuse Diameter x Length: 13/32 in x 2-1/4 in
• Fuse Length: 2-1/4 in
• Interrupt Rating - AC: 100 kA
• Speed: Time-Delay
• Standards: CSA Certified to C22.2 No. 248.5; UL Listed 248-5
• Visual Indication: Non-Indicating
• UNSPSC: 39121604
• Time Delay: Yes (Above 5A)
• Current Limiting: Yes
• Physical Size: 0.406" x 2.25"
• AC Interrupting Rating: 100,000 AIC
• Applications: Lighting, Heating, Appliances
• UL Listed: To Standard 248-5 File E2137
• CSA Certified: To Standard C22.2 No. 248.5
• Model: AG50
