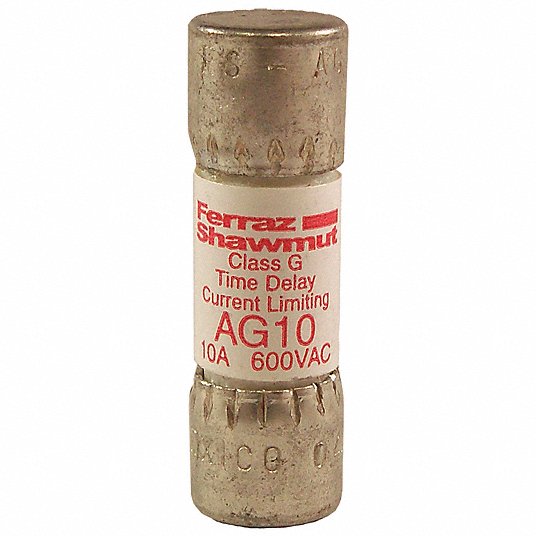

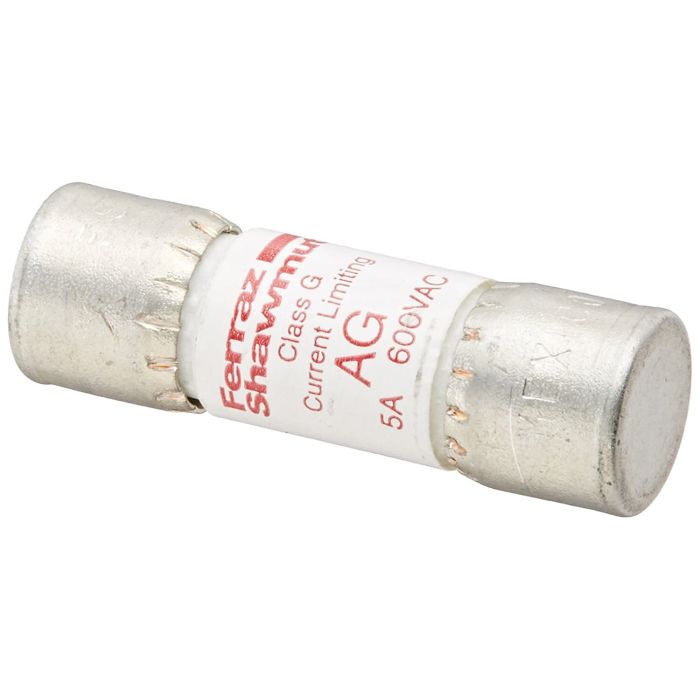

Mersen AG10 AG Fuse 10A

Product Description

The MERSEN AG10 Amp-Trap AG fuse series is a complete line of UL listed Class G fuses with time delay (above 5 A rating). These fuses provide branch circuit protection for lighting, heating and appliance circuits. They have a voltage rating of 600 VAC and an interrupt rating of 100 kA.

• Four unique sizes from 1/2 - 60 A do not allow inter-changeability with other fuse classes
• Fiberglass bodies provide dimensional stability in harsh industrial settings
• Tin-plated copper contact

Product Highlights

The MERSEN AG10 fuse is ideal for lighting, heating, and appliance circuits. It offers reliable branch circuit protection in a compact, cylindrical design.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: AG10
• Country of Origin: Mexico

Technical Specifications

• Class: G
• Series: AG Series
• Element: Dual
• Material: Fiber
• Body Size: 0.406 in Dia x 1.31 in L
• Body Type: Cylindrical
• Mounting Type: Clip
• Terminal Type: Ferrule
• Voltage Rating: 600 VAC
• Amperage Rating: 10 A
• Interrupt Rating: 100 kA
• Country of Origin: MX
• Rejection/Non-Rejection: Rejection
• Indicating/Non-Indicating: Non-Indicating
• Sub Brand: Amp-Trap®
• Made in USA: No
• Application: Lighting Heating (except in Canada where fuses must be “P” or “D” type) Appliances
• Standard: UL listed to standard 248-5 File E2137 CSA certified to standard C22.2 No. 248.5
• Item Type: Class G
• Size: 1.31 x 0.41
• Characteristics: Time Delay, Fast Acting
• Body Material: Glass-Melamine Laminate
• Contact Material: Tin-Plated Copper
• AC Voltage Rating: 600 V AC
• Current Rating: 10 A
• Fuse Block Style: Rejection
• Fuse Body Style: Cylindrical
• Fuse Class or Type: G
• Fuse Diameter: 13/32 in
• Fuse Diameter x Length: 13/32 in x 1-3/8 in
• Fuse Length: 1-3/8 in
• Interrupt Rating - AC: 100 kA
• Speed: Time-Delay
• Standards: CSA Certified to C22.2 No. 248.5; UL Listed 248-5
• Visual Indication: Non-Indicating
