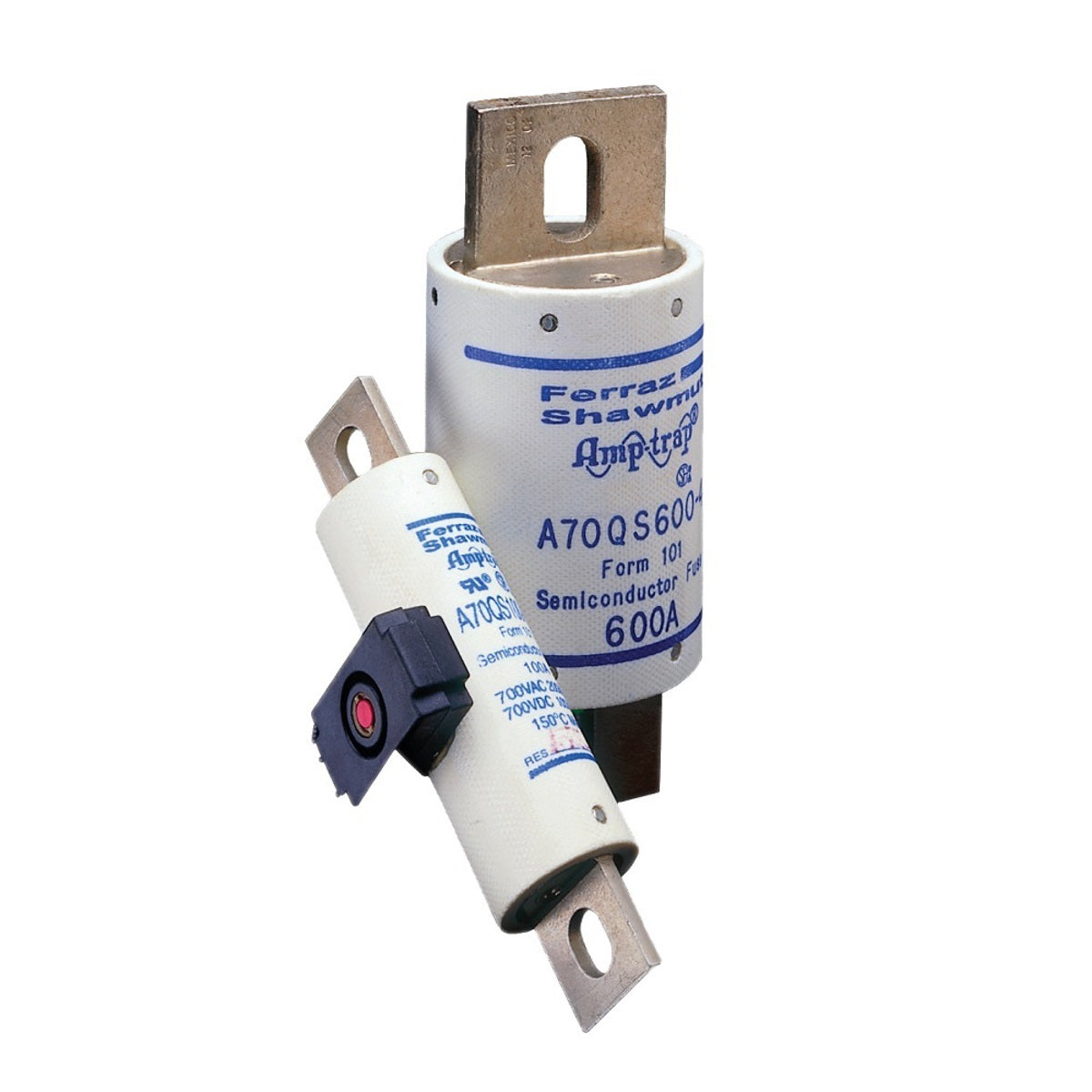

Mersen A70QS250-4 High Speed Fuse Amp-Trap 700VAC 700VDC 250A Bolted Blade

Product Description

The Mersen A70QS250-4 is a high-speed fuse designed for applications requiring reliable circuit protection. This fuse operates efficiently at 700 volts AC or DC and has an amperage rating of two hundred fifty amperes. It is suitable for the protection of inverters and motor drives operating at 700 volts or less.

• Voltage rating of 700 volts AC/DC
• Amperage rating of two hundred fifty amperes
• Designed for bolted blade connections

Product Highlights

This product offers superior cycling ability and minimal watt loss, resulting in cooler operation.

Product Information

Standard Information

• Brand: Mersen
• Manufacturer: Mersen

Technical Specifications

• Catalog Number: A70QS250-4
• Connection: Blade
• Mounting: Bolt
• Application: Protection of 700 volts or less motor drives, UPS, inverters
• Country of Origin: Mexico
• Made in USA: No
• Special Features: Very low I2t for improved equipment protection, superior cycling ability, low watts loss for cooler operation, ultra compact sizes for equipment downsizing
• Voltage Rating: 700 volts
• Amperage Rating: 250 amperes
• Standard: UL recognized component, CSA certified
• UPC: 782001948320
• Item Type: Round body high-speed fuse-links AC protection
• Size: 5.09 x 1.5 inches
