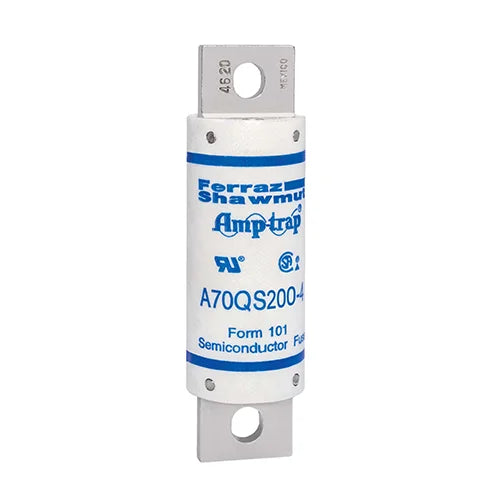

Mersen A70QS200-4 High Speed Fuse Amp-Trap 700VAC/700VDC 200A Bolted Blade

Product Description

The MERSEN A70QS200-4 is a high-speed Amp-Trap fuse developed for enhanced performance in 700V semiconductor fuses. These fuses offer lower I2t for superior protection, extended life under cyclic loading, and reduced watts loss. Ideal for safeguarding dynamic solid-state equipment like motor drives and UPS systems.

• Semiconductor Fuse
• Extremely Fast Acting
• Current Limiting

Product Highlights

Offers improved protection of equipment and superior cycling ability with low watts loss. UL and CSA certified.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70QS200-4

Technical Specifications

• Item number: A70QS200-4
• Description: High Speed Fuse Amp-Trap A70QS 700VAC 700VDC 200A Bolted Blade
• EAN/UPC Code: 782001948580
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 700 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 200 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.22 in
• Product Length: 4.38 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.51 lb
• AC Voltage Rating: 700
• DC Voltage Rating: 700
• AC Interrupting Rating: 200,000 AIC
• DC Interrupting Rating: 100,000 AIC
• Physical Size: 1.22" x 4.38"
• Manufacturer: Mersen / Ferraz Shawmut
• Family: Amp-Trap
• Amp: 200
• Volt: 700
• Category: Fuses
• Type: A70QS
• AIC Ratings: 200kA@700V
• Brand: Mersen
• Body Size: 1.22 in Dia x 4.38 in L
• Body Type: Cylindrical
• Element: Single
• ETIM: EC004556
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 200/100 kA
• Material: Fiber
• Mounting Type: Bolt
• Rejection/Non-Rejection: Non-Rejection
• Response Time: 10 ms
• Series: A70QS
• Voltage Rating: 690 V AC/700 V DC, 690 VAC/700 VDC
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: V212814
• Breaking Capacity: 50 kA
• Current Rating: 200 A
• For Use With: Fuses
• Manufacturer Part Number: A70QS200-4
• Primary Type: Fuse
• Speed: high speed sec
• Catalog Number: A70QS200-4
• Catalog / Class: Semiconductor
