Mersen A70P60-4 High Speed Fuse Amp-Trap 700VAC 650VDC 60A Bolted Blade

Product Description

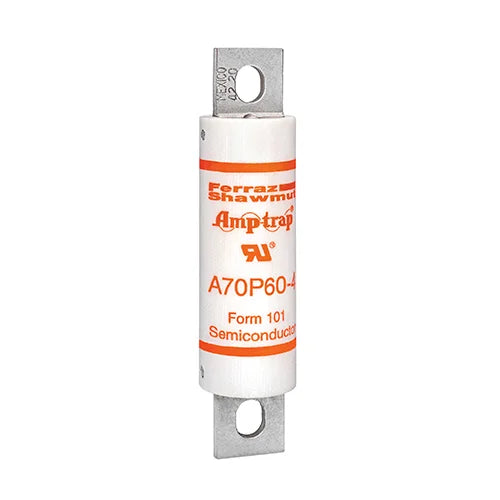

The MERSEN A70P60-4 is a high-speed Amp-Trap® Form 101 fuse designed for AC and DC drives, UPS systems, and reduced voltage motor starters. This 700VAC/650VDC, 60A fuse offers lower I2t and superior reliability and is suitable as a replacement fuse in a wide range of ratings.

• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing
• Choice of mounting types helps in equipment design

Product Highlights

High-speed fuse for AC and DC drives, UPS systems, and motor starters. Offers reliable protection and lower I2t.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P60-4
• Country of Origin: United States

Technical Specifications

• Item number: A70P60-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 60A Bolted Blade
• EAN/UPC Code: 782001947187
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 60 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 65 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1 in
• Product Length: 4.38 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Brand / Manufacturer: MERSEN (FERRAZ SHAWMUT)
• Voltage: 700 Volts
• Series: A70P
• Catalog Number: A70P60-4
• Catalog / Class: Semiconductor
• Speed: Very Fast Acting
• SKU: A70P60-4
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: A213325
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Body Material: Glass
• Breaking Capacity: 65 kA
• Contact Material: Tin-plated Brass
• Current Rating: 60 A
• Manufacturer Part Number: A70P60-4
• Primary Type: Single Use Fuses
• Amp-Trap A70P Series: Amp-Trap A70P Series
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Bolted
• Type: Cylindrical Fuses
• Voltage Rating: 700 V
• MPN: A70P60-4
• UPC: 78200194718
• Manufacturer: Mersen
• AC Adapter Current: 60 Amps
• Maximum Current: 60 Amps
