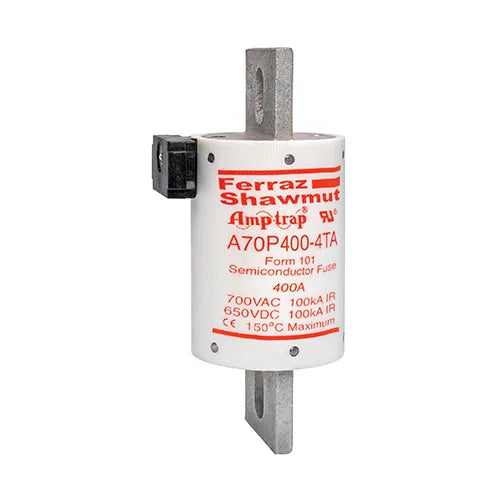

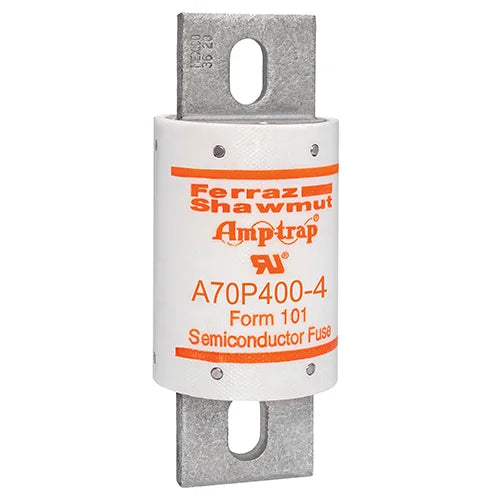

Mersen A70P400-4 High Speed Fuse Amp-Trap A70P 700VAC 650VDC 400A Bolted Blade

Product Description

The MERSEN A70P400-4 is a high-speed Amp-Trap® Form 101 fuse designed for AC and DC drives, UPS systems, and reduced voltage motor starters. This 700VAC/650VDC, 400A fuse offers lower l2t and superior reliability and is suitable for replacement applications. It features a bolted blade connection and tin-plated copper terminals.

• High Speed
• 700VAC
• 650VDC
• Bolted Blade

Product Highlights

High-speed fuse for AC and DC applications requiring reliable overcurrent protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P400-4

Technical Specifications

• Item number: A70P400-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 400A Bolted Blade
• EAN/UPC Code: 782001947347
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 400 A
• ROHS Compliant: Yes
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 2 in
• Product Length: 5.09 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Amperage: 400
• Voltage: 700
• Fuse Class: Semiconductor
• AC Interrupting Rating: 100,000 AIC
• DC Voltage Rating: 650
• DC Interrupting Rating: 100,000 AIC
