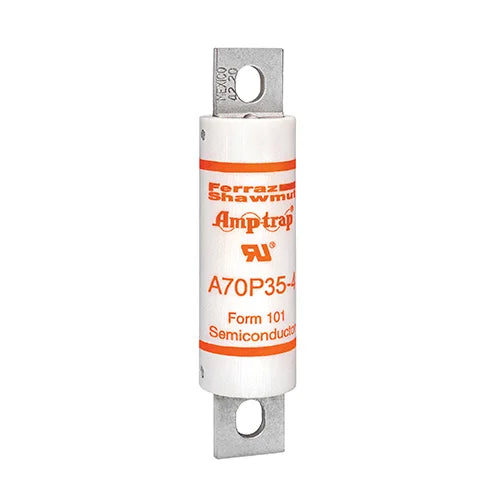

Mersen A70P35-4 High Speed Fuse Amp-Trap A70P 700VAC 650VDC 35A Bolted Blade

Product Description

The MERSEN A70P35-4 is a high-speed Amp-Trap A70P Form 101 fuse designed for higher voltage AC and DC drives, UPS systems, and reduced voltage motor starters. It offers lower I2t and superior reliability and is commonly used for replacement purposes.

• High Speed
• 700VAC
• 650VDC

Product Highlights

This MERSEN high-speed fuse minimizes damage to protected components on short circuits and reduces stress to circuit components during fuse clearing.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P35-4

Technical Specifications

• Item number: A70P35-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 35A Bolted Blade
• EAN/UPC Code: 782001947132
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 35 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 65 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Length: 4.38 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Brand: Mersen
• UPC: 0782001947132
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Body Material: Glass
• Breaking Capacity: 65 kA
• Contact Material: Tin-plated Brass
• Current Rating: 35 A
• Manufacturer Part Number: A70P35-4
• Primary Type: Single Use Fuses
• Series: Amp-Trap A70P Series
• Speed: Fast Acting sec
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Bolted
• Type: Cylindrical Fuses
• Voltage Rating: 700 V
• Mpn: A70P35-4
• Gtin: 00782001947132
• Amperage Rating: 35
• Voltage: 700
• Catalog Number: A70P35-4
• Catalog / Class: Semiconductor
