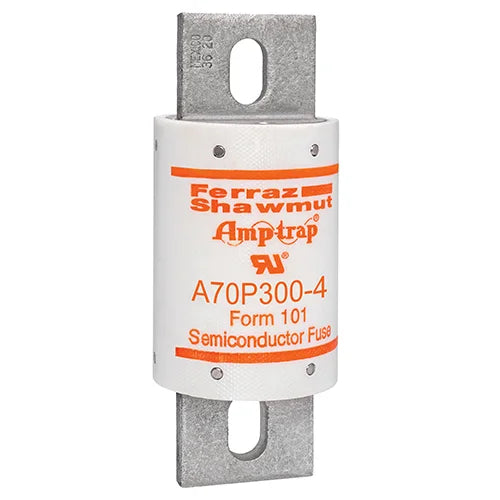

Mersen A70P300-4 High Speed Fuse Amp-Trap A70P 700VAC 650VDC 300A Bolted Blade

Product Description

The MERSEN A70P300-4 is a high-speed Amp-Trap A70P fuse designed for AC and DC drives, UPS systems, and reduced voltage motor starters. This fuse offers lower l2t and superior reliability. It is a popular choice for replacement applications requiring a 700VAC/650VDC, 300A bolted blade fuse.

• High Speed
• 700VAC
• 650VDC
• 300A

Product Highlights

High-speed fuse with bolted blade, ideal for AC and DC drives, UPS systems, and motor starters.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P300-4

Technical Specifications

• Item number: A70P300-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 300A Bolted Blade
• EAN/UPC Code: 782001947323
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 300 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 2 in
• Product Length: 5.09 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Voltage rating: 700 Vac, 650 Vdc
• Interrupt rating: 50 kA
• Class: Semiconductor
• Shape: Cartridge
• Approvals: UL, RoHS
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Body Material: Glass
• Brand: Mersen
• Breaking Capacity: 50 kA
• Contact Material: Tin-plated Copper
• Current Rating: 300 A
• For Use With: Fuses
• Manufacturer Part Number: A70P300-4
• Primary Type: Single Use Fuses
• Series: Amp-Trap A70P Series
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Bolted
• Type: Cylindrical Fuses
• Voltage Rating: 700 V
• Amperage Rating: 300
• Voltage: 700
• Catalog Number: A70P300-4
• Catalog / Class: Semiconductor
• Speed: Very Fast Acting
• SKU: A70P300-4
