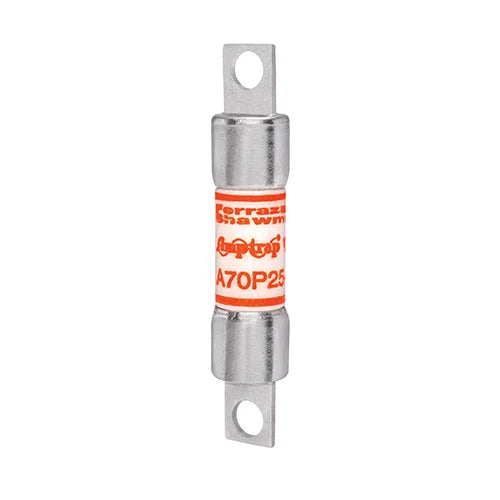

Mersen A70P25-4 High Speed Fuse Amp-Trap A70P 700VAC/650VDC 25A Bolted Blade

Product Description

The MERSEN A70P25-4 Amp-Trap Form 101 high-speed fuse is designed for AC and DC drives, UPS systems, and reduced voltage motor starters requiring superior reliability. This fuse minimizes damage to protected components during short circuits and reduces stress during fuse clearing. It is commonly used for replacement purposes.

• High Speed
• Current Limiting
• Controlled arc voltage reduces stress to circuit components

Product Highlights

Very fast acting, current limiting and low I2t. Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P25-4

Technical Specifications

• Item number: A70P25-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 25A Bolted Blade
• EAN/UPC Code: 782001948115
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 25 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 0.56 in
• Product Length: 2.88 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.45 lb
• Amps: 25
• Volts AC: 700
• Fuse Type: Semiconductor
• Speed: Very Fast Acting
• Features: Current Limiting
• Physical Size: 0.56" x 2.88"
• DC Voltage Rating: 650
• AC Interrupting Rating: 100,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UL Recognized Component: UL File E60314
• AC: Guide No.: JFHR2 (10-1000A)
• DC Tested to UL Standard 198L Parameters: (10-800A)
• AC Adapter Current: 25 Amps
• Brand: Mersen
• Voltage: 700 Volts
• Material: graphite
• Specification Met: UL
• Maximum Current: 25 Amps
• Series: A70P
• Catalog Number: A70P25-4
• Catalog / Class: Semiconductor
• SKU: A70P25-4
