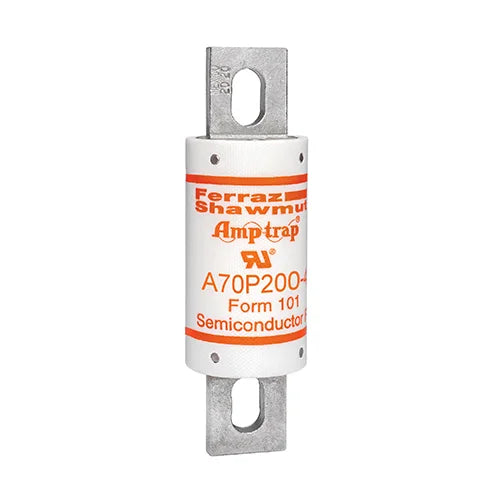

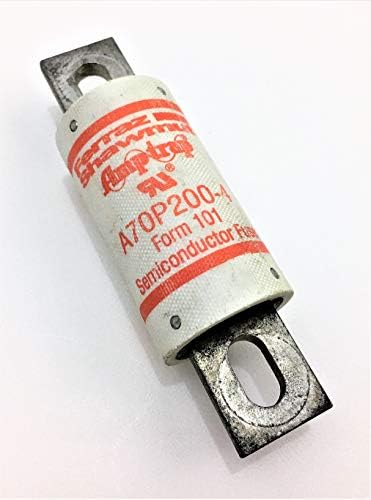

Mersen A70P200-4 High Speed Fuse Amp-Trap A70P 700VAC/650VDC 200A Bolted Blade

Product Description

The MERSEN A70P200-4 is a high-speed Amp-Trap Form 101 fuse designed for higher voltage AC and DC drives, UPS systems, and reduced voltage motor starters. This 200A fuse offers lower I2t and superior reliability. It is suitable for replacement applications requiring robust protection.

• High Speed
• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing

Product Highlights

This Mersen A70P200-4 fuse provides reliable, high-speed protection for sensitive components in AC and DC systems.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P200-4

Technical Specifications

• Item number: A70P200-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 200A Bolted Blade
• EAN/UPC Code: 782001947309
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency: 50/60 Hz
• Ampere Rating: 200 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting Type: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 38.1 mm
• Product Length: 129.3 mm
• Product group: High-Speed and Semiconductor protection fuses
• Body Material: GMG
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: K218946
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Brand: Mersen
• Contact Material: Tin-plated Brass
• Current Rating: 200 A
• Manufacturer Part Number: A70P200-4
• Primary Type: Single Use Fuses
• Series: Amp-Trap A70P Series
• Speed: Fast Acting sec
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Bolted
• Type: Cylindrical Fuses
• Voltage Rating: 700 V
• Class: J
• Voltage: 700 Volts
• Material: Metal
• Number of Items: 1
• Manufacturer: Mersen
• Maximum Current: 200 Amps
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 100 kA
• Body Type: Cylindrical
• Rejection/Non-Rejection: Non-Rejection
• Response Time: 10 ms
• Terminal Type: Bolted
