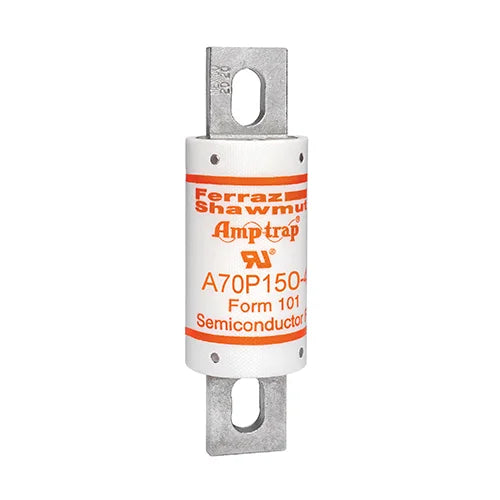

Mersen A70P150-4 High Speed Fuse Amp-Trap A70P 700VAC 650VDC 150A Bolted Blade

Product Description

The MERSEN A70P150-4 is a high-speed Amp-Trap® Form 101 fuse designed for AC and DC drives, UPS systems, and reduced voltage motor starters. It offers lower l2t and superior reliability. This fuse is commonly used for replacement purposes in a wide range of applications.

• High Speed
• Bolted Blade
• Low I2t minimizes damage to protected components on short circuit

Product Highlights

The MERSEN A70P150-4 fuse provides reliable, very fast-acting protection for semiconductor devices in various applications.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P150-4

Technical Specifications

• Item number: A70P150-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 150A Bolted Blade
• EAN/UPC Code: 782001947286
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 150 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.5 in
• Product Length: 5.09 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Amperage: 150 Amps
• Voltage: 700V AC
• Fuse Type: Semiconductor
• Acting Speed: Very Fast Acting
• Features: Current Limiting
• Physical Size: 1.5" x 5.09"
• AC Voltage Rating: 700
• DC Voltage Rating: 650
• AC Interrupting Rating: 100,000 AIC
• DC Interrupting Rating: 100,000 AIC
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: A214843
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Body Material: Glass
• Brand: Mersen
• Breaking Capacity: 50 kA
• Contact Material: Tin-plated Brass
• Current Rating: 150 A
• For Use With: Fuses
• Manufacturer Part Number: A70P150-4
• Series: A70P
• Speed: Fast Acting sec
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Bolted
• Voltage Rating: 700 V
• UPC: 0782001947286
• Catalog Number: A70P150-4
• Catalog / Class: Semiconductor
• SKU: A70P150-4
• Body Size: 1.5 in Dia x 5.09 in L
• Body Type: Cylindrical
• ETIM: EC000055, EC004556
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 100 kA
• Material: Fiber
• Mounting Type: Bolt
• Rejection/Non-Rejection: Non-Rejection
• Response Time: 10 ms
• Terminal Type: Bolted
