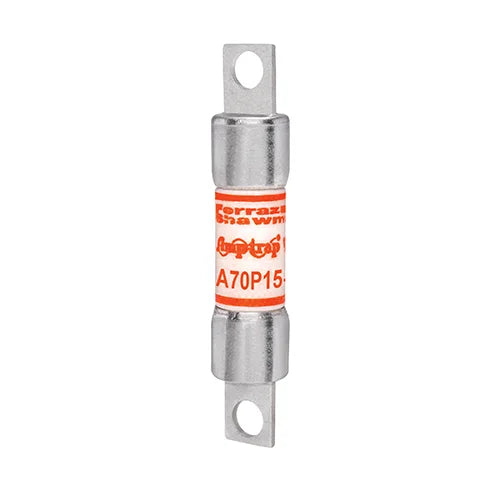

Mersen A70P15-4 High Speed Fuse Amp-Trap 700VAC/650VDC 15A Bolted Blade

Product Description

The MERSEN A70P15-4 is a high-speed Amp-Trap fuse designed for AC and DC drives, UPS systems, and reduced voltage motor starters. This fuse offers lower I2t and superior reliability. It is suitable for applications where reliable overcurrent protection is crucial. The A70P fuse is a popular choice for replacement needs.

• Very Fast Acting
• Current Limiting
• Controlled Arc Voltage Reduces Stress to Circuit Components During Fuse Clearing

Product Highlights

High-speed fuse for AC and DC drives, UPS systems, and motor starters. Offers reliable overcurrent protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P15-4
• Country of Origin: United States

Technical Specifications

• Item number: A70P15-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 15A Bolted Blade
• EAN/UPC Code: 782001948139
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 15 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Blade
• Product Diameter: 0.56 in
• Product Length: 2.88 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.45 lb
• Voltage: 700
• Fuse Class: Semiconductor
• Fuse Speed: Very Fast Acting
• Application: Protection of 700V or less DC Drives, UPS, Inverters, Reduced Voltage Starters
• UL Recognized Component: UL File E60314
• AC: Guide No.: JFHR2 (10-1000A)
• DC Tested to UL Standard 198L Parameters: (10-800A)
• Brand: Ferraz Shawmut
• Voltage Rating - DC: 650 VDC
• Series: A70P
• Applications: Electrical, Industrial
• Packaging: Bulk
• Features: Indicating
• Part Status: Active
• Approval Agency: UR
• Mounting Type: Bolt Mount
• Breaking Capacity @ Rated Voltage: 100kA
• Fuse Type: Cartridge
• Package / Case: Cylindrical, Blade Terminal (Bolt)
• Current Rating (Amps): 15A
• Size / Dimension: 0.559" Dia x 2.882" L (14.20mm x 73.20mm)
• Voltage Rating - AC: 700 VAC
• Body Material: Glass
• Contact Material: Tin-plated Copper
• Manufacturer Part Number: A70P15-4
• Primary Type: Single Use Fuses
• Speed: Fast Acting sec
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Bolted
• Type: Cylindrical Fuses
• UPC Code: 0782001948139
• Current Rating: 15 A
• Body Size: 0.56 in Dia x 2.88 in L
• Body Type: Cylindrical
• Indicating/Non-Indicating: Non-Indicating
• Interrupt Rating: 100 kA
• Material: Fiber
• Rejection/Non-Rejection: Non-Rejection
• Terminal Type: Bolted
• Voltage Rating: 700 V AC/650 V DC, 700 VAC, 650 VDC
• Catalog Number: A70P15-4
• Catalog / Class: Semiconductor
