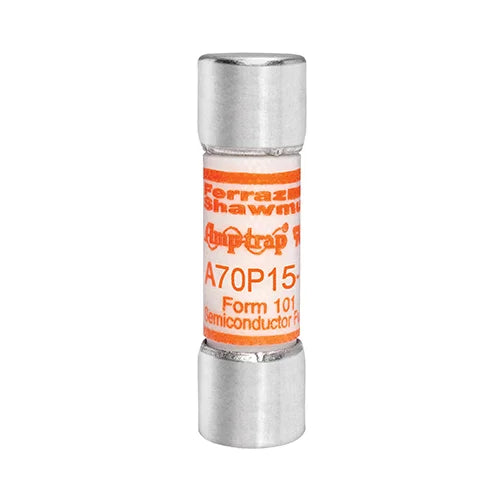

Mersen A70P15-1 High Speed Fuse Amp-Trap A70P 700VAC 650VDC 15A Ferrule

Product Description

The MERSEN A70P15-1 is a high-speed Amp-Trap Form 101 fuse designed for higher voltage AC and DC drives, UPS systems, and reduced voltage motor starters. It provides lower I2t and superior reliability. This fuse is commonly used for replacement purposes in various applications.

• High Speed
• 700VAC
• 650VDC

Product Highlights

High-speed fuse with 700VAC and 650VDC ratings, ideal for AC and DC drives, UPS systems, and motor starters.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P15-1

Technical Specifications

• Item number: A70P15-1
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 15A Ferrule
• EAN/UPC Code: 782001947088
• Rated voltage AC UL: 700 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 15 A
• AC or DC: AC
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Product Weight: 0.41 lb
• Voltage rating: 700 Vac
• Interrupt rating: 50 kA
• Class: Semiconductor
• Shape: Cartridge Fuses
• Approvals: UL
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Body Material: Glass
• Brand: Mersen
• Breaking Capacity: 50 kA
• Contact Material: Tin-plated Copper
• Current Rating: 15 A
• Manufacturer Part Number: A70P15-1
• Primary Type: Single Use Fuses
• Series: Amp-Trap A70P Series
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Termination: Cartridge
• Type: Cylindrical Fuses
• Mpn: A70P15-1
• Upc: 782001947088
• Gtin: 782001947088
