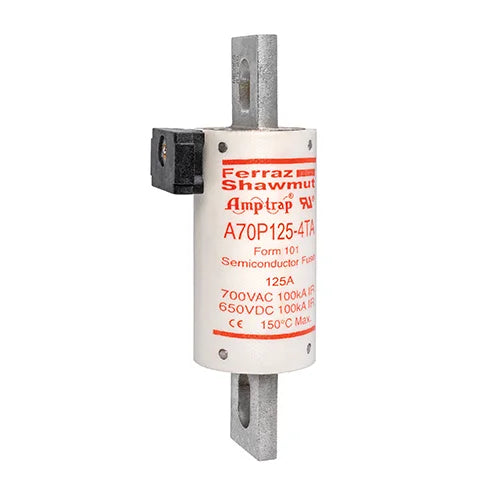

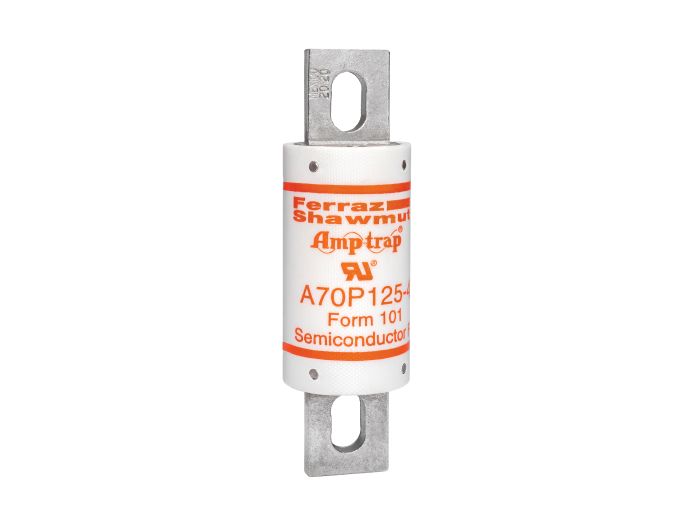

Mersen A70P125-4 High Speed Fuse Amp-Trap A70P 700VAC 650VDC 125A Bolted Blade

Product Description

The MERSEN A70P125-4 is a high-speed Amp-Trap® Form 101 fuse designed for higher voltage AC and DC drives, UPS systems, and reduced voltage motor starters. This fuse offers lower l2t and superior reliability. It is a popular choice for replacement applications. Rated for 700VAC and 650VDC at 125A with a bolted blade connection.

• High Speed
• Bolted Blade
• Low I2t minimizes damage to protected components on short circuit

Product Highlights

High-speed fuse for AC/DC drives and UPS systems requiring reliable overcurrent protection.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P125-4

Technical Specifications

• Item number: A70P125-4
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 125A Bolted Blade
• EAN/UPC Code: 782001947279
• Rated voltage AC UL: 700 V
• Rated voltage DC UL: 650 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 125 A
• AC or DC: AC/DC
• Speed/Characteristic: High Speed
• Mounting: Bolted
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Brass
• Connection/Terminal Type: Blade
• Product Diameter: 1.5 in
• Product Length: 5.09 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• Manufacturer Part Number: A70P125-4
• Manufacturer: Mersen
• Family Series: Mersen Fuses
• Fuse Type: Semiconductor
• Current Rating: 125 A
• Voltage: 700
• Series: A70P
• Catalog Number: A70P125-4
• Catalog / Class: Semiconductor
• Speed: VERY FAST ACTING
• SKU: A70P125-4
