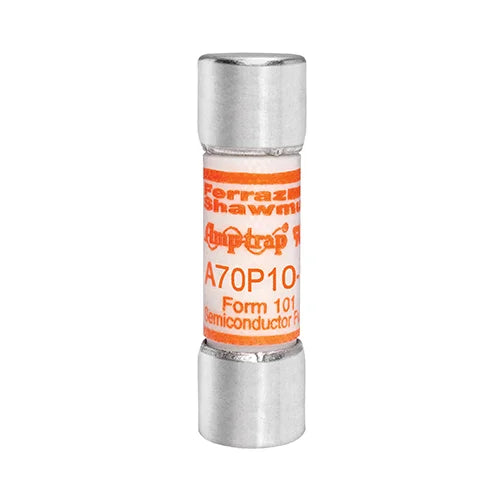

Mersen A70P10-1 High Speed Fuse Amp-Trap A70P 700VAC 650VDC 10A Ferrule

Product Description

The Mersen A70P10-1 is a high-speed Amp-Trap Form 101 fuse designed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters, and similar applications where lower I2t and superior reliability are needed. A70P fuses are available in a wide range of ratings and typically used for replacement.

• High Speed
• Low I2t minimizes damage to protected components on short circuit
• Controlled arc voltage reduces stress to circuit components during fuse clearing

Product Highlights

The Mersen A70P10-1 fuse provides reliable protection for sensitive components in various high-voltage applications. Its high-speed operation and robust design ensure optimal performance and longevity.

Product Information

Standard Information

• Brand: MERSEN
• Manufacturer Part Number: A70P10-1
• Country of Origin: United States

Technical Specifications

• Item number: A70P10-1
• Description: High Speed Fuse Amp-Trap A70P 700VAC 650VDC 10A Ferrule
• EAN/UPC Code: 782001947095
• Rated voltage AC UL: 700 V
• Frequency (Hz): 50/60 Hz
• Ampere Rating: 10 A
• AC or DC: AC
• Speed/Characteristic: High Speed
• Mounting: Clip
• AC Max I.R./Breaking Capacity: I1: 50 kA
• Connection/Terminal Material: Tin-Plated Copper
• Connection/Terminal Type: Ferrule
• Product Diameter: 0.56 in
• Product Length: 2 in
• Product group: High-Speed and Semiconductor protection fuses
• Body/Insulating Material: GMG
• UNSPSC Code: 39120000
• Alternate Mfr Part Number: R212811
• Application: Protection of 700V or less DC drives, UPS, inverters, reduced voltage starters, etc.
• Body Material: Glass
• Brand: Mersen
• Breaking Capacity: 50 kA
• Contact Material: Tin-plated Copper
• Current Rating: 10 A
• Manufacturer Part Number: A70P10-1
• Primary Type: Single Use Fuses
• Series: Amp-Trap A70P Series
• Speed: Very Fast Acting sec
• Standards: UL Recognized Component AC: Guide No. JFHR2 DC: Tested to UL Standard 198L parameters Some Ratings RoHS Compliant
• Terminal Material: Tin-Plated Copper
• Termination: Cartridge
• Type: Cylindrical Fuses
• UPC Code: 0782001947095
• Voltage Rating: 700 V
